ARP-2221AP-G01-002
C1D2 Location Panel Mount Thin Client Panel PC with 21.5 inch 5-Wire Resistive Touch
Description：
- 21.5" LCD, 1920 x 1080 Resolution
- 5-Wire Resistive Touch
- Aluminum or Stainless-Steel Bezel
- Intel i7-3612QM CPU
- 8GB DDR3 SO-DIMM
- Dual Gigabit Ethernet
- 2 x RS-232/422/485 BIOS Selectable
- 4 x USB 3.0, 2 x USB 2.0 ports
- ThinManager Ready
Download file
-
Specifications ARP-2221AP-G01-002 LCD Display Display Size (Diagonal) 21.5 inch Resolution 1920 x 1080 Backlight Lifetime (Hours) 50,000 Visual Characteristics Colors 16.7 million Aspect ratio 16:9 Viewing angle (V/H) 178° / 178° Contrast ratio 1000 : 1 Brightness 250 nits Touch Screen Technology 5 Wire Resistive Interface USB Driver ThinManager Supported Driver Front Bezel NEMA 4 Black Powder Coated Aluminum NEMA 4x Stainless Steel (Optional) System CPU Intel i7-3612QM Chipset Intel QM77 Memory 8GB DDR3 Video Controller Intel HD Graphics 4000 External Video Output DVI / HDMI / Display Port Storage Option N/A CFast N/A Keyboard / Mouse USB / PS2 Audio Line in, Line Out, Mic-In Watchdog Timer Programmable 1 - 255 sec Remote Boot ThinManager Ready, PXE Expansion Slot 1 x PCIe x16 I/O Communication USB Port 4 x USB 2.0, 2 x USB 3.0 Serial Port 2 x RS-232/422/485 IEEE 1394 N/A LAN Dual Gigabit LAN Parallel N/A GPIO N/A Samrt Battery External Smart Battery N/A OS Support OS Support N/A Power / Thermal Specs Power Requirement (Max) 24VDC / 3.00A Power Consumption (Max) 72 W Recommended Power Supply 120W Heat Dissipation 250 BTU/hr Physical Information Mounting Panel Mount Net Weight 28 Lbs / 12.7 Kg Dimension (WxHxD) 20.98 x 12.99 x 5.78 inch
533.0 x 330.0 x 146.7 mmRecommended Cutout Dimension (WxH) 19.92 x 12.35 inch
506.0 x 313.7 mmEnvironmental Operating Temperature 0-50ºC (32~122ºF) Storage Temperature -20~60ºC (-4~140ºF) Relative Humidity 0~95% IP/NEMA Rating Bezel meets NEMA 4/4X requirements Certification c UL Class I Division II -
Ordering Information ARP-2221AP-G01-002-C1D2 ARP-2221AP-G01-006-C1D2 LCD Display Standard Standard Touch Screen 5-Wire 5-Wire Bezel Black Powder Coated Stainless Steel CPU i7 Mobile i7 Mobile Memory 8GB DDR3 8GB DDR3 Storage NA NA ThinManager Ready YES YES Power Supply 24VDC Input 24VDC Input C1D2 Approval YES YES -
Driver Win 10 (64bit) Chipset Graphic Intel Smart Connect Intel ME N/A N/A Touch (eGalax) Win 10 (32bit) Chipset Graphic Intel Smart Connect N/A N/A N/A Touch (eGalax) Win 8.1 (64bit) Chipset Graphic Intel Smart Connect Intel ME LAN Audio Touch (eGalax) Win 8.1 (32bit) Chipset Graphic Intel Smart Connect Intel ME LAN Audio Touch (eGalax) Win 7 (64bit) Chipset Graphic Intel Smart Connect Intel ME LAN Audio Touch (eGalax) Win 7 (32bit) Chipset Graphic Intel Smart Connect Intel ME LAN Audio Touch (eGalax) Win XP (32bit) Chipset Graphic N/A Intel ME LAN Audio Touch (eGalax) Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
Download Download Download Download Download -
Packing List Item QTY Description PIC AR02045 13 Panel Mount Hanger with Screw
AR06307 5 Panel Mount Bracket with Screw
APS-DR1150F-24 1 150W DIN-Rail Power Supply (AC DIN-Rail Version Only)

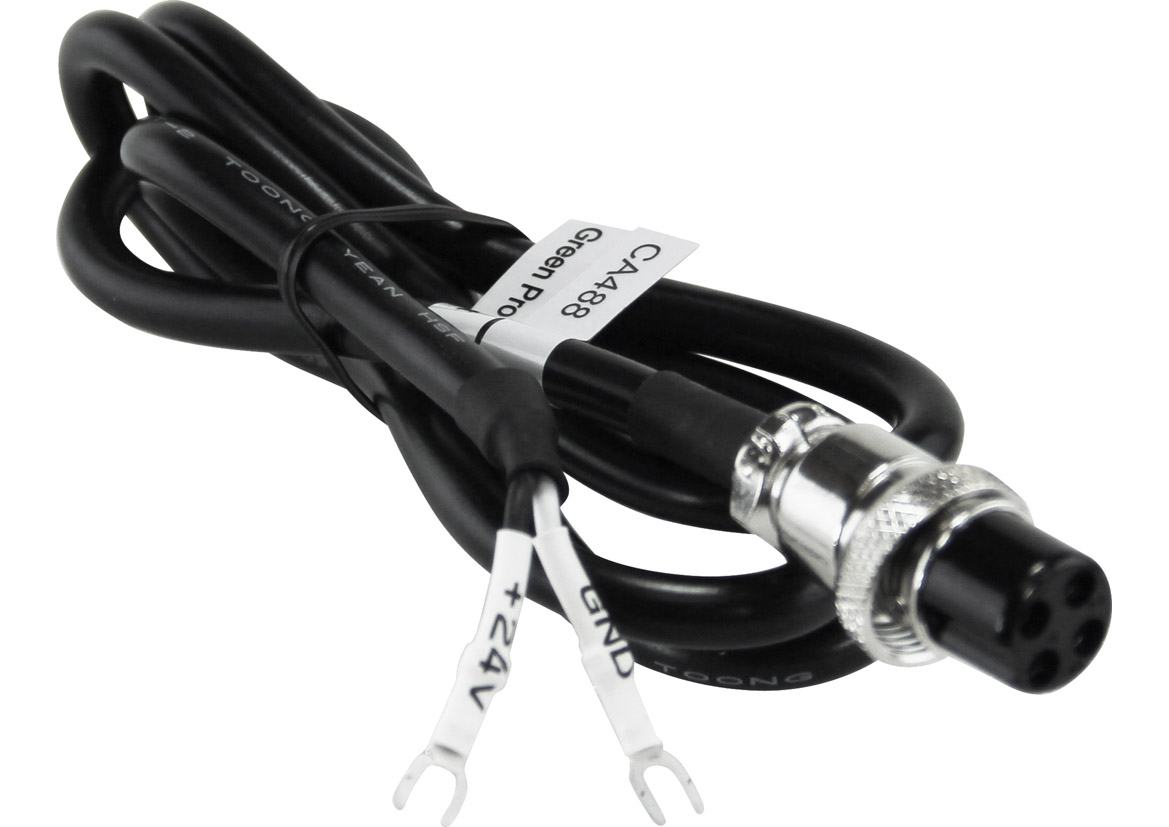

CA488 1 3 Feet 4PIN Circular DC-DC Cable (AC DIN-Rail and DC Version Only)
CA490 1 6 Feet DIN-Rail Input Power Cord (AC DIN-Rail Version Only)
FRA150-S240-4 1 150W 4PIN Circular Power Adapter (AC Power Adapter Version Only)
CB003 1 6 Feet US Power Cord (AC Power Adapter Version Only)
Accessories Options Item QTY Description PIC CB390 1 6 Feet M-M DVI-D Dual Link Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
CA647 1 6 FEET M-M Display Port Cable
CA489 1 10 Feet 4PIN Circular DC-DC Cable (AC DIN-Rail and DC Version Only)
-
