ARP-5542AX
NEMA 4X Waterproof Panel PC with 42-inch IR Touch Screen
Description：
- 42" LCD, 1920 x 1080 Resolution
- 5-Wire Resistive Touch
- Stainless Steel 316L Enclosure
- Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
- Up to 8GB DDR3
- 1x Gigabit Ethernet
- 2x USB 2.0 ports
- Optional 2.5" SSD
- Wi-Fi Connectivity (Optional)
- 24VDC Operating Voltage
Download file
-
Specifications ARP-5542AX-E01 LCD Display Display Size 42 inch Max Resolution 1920 x 1080 Backlight Lifetime 50,000 hours Visual Characteristics Colors 1073 million Aspect Ratio 16:09 Viewing Angle (V/H) 178° / 178° Contrast Ratio 4000:01:00 Brightness 500 nits Touchscreen Technology Infrared Interface USB Driver Windows 7 & Windows 10 Enclosure NEMA 4 N/A NEMA 4x Stainless Steel 316L System CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU Chipset Bay Trail Memory Up to 8GB DDR3L SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL3.2 External Video Output N/A Storage Option Optional 2.5" SSD Compact Flash N/A Keyboard / Mouse USB Audio N/A Watchdog Timer Programmable 1 - 255 sec Remote Boot ThinManager Ready, PXE Expansion Slot N/A I/O Communication USB Port 2 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Windows 7, Windows 10 Power/Thermal Specs Power Requirement (Max) 24VDC / 7.54A Power Consumption (Max) 181 W Recommended Power Supply 259 W Heat Dissipation 618 BTU/hr Physical Information Mounting VESA Mount (Optional Wall mount) Net Weight 110 Lbs/ 50 kg Dimension (W x H x D) 42.87 x 27.29 x 5.38 inch
1089.0 x 693.05 x 136.1 mmRecommended Cutout Dimension (WxH) N/A IP/NEMA Rating Meets NEMA 4X Certification N/A Environmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% -
Ordering Information ARP-5542AX-E01-006 LCD Display 42" LCD / 1920 x 1080 Touch Screen IR Enclosure Stainless Steel 316L CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU Memory 4GB DDR3 Storage N/A Remote Boot ThinManager Ready Power Supply 24VDC INPUT Ordering Information ARP-5542AX-H01-034-700 ARP-5542AX-H01-035-700 LCD Display 42" LCD / 1920 x 1080 42" LCD / 1920 x 1080 Touch Screen IR IR Enclosure Stainless Steel 316L Stainless Steel 316L CPU Intel 2.6/3.4 GHz i7-6600U Intel 2.6/3.4 GHz i7-6600U Memory 16GB DDR4 16GB DDR4 Storage 2.5" SSD 2.5" SSD Remote Boot N/A N/A Power Supply 24VDC INPUT DIN-Rail Power Supply -
Document Datasheet 2D Line Drawing User Manual PDF PDF PDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
Download Download Download Download Download -
Packing List Item QTY Description PIC CA260A 1 10 Feet 4PIN Waterproof DC Cable
CA298 1 6 Feet Waterproof RJ45 Cable
APS-DR1240C-24 1 240W DIN-Rail Power Supply (AC DIN-Rail Version Only)
CA490 1 6 Feet DIN-Rail Input Power Cord (AC DIN-Rail Version Only)
Accessories Options Item QTY Description PIC CA648 1 3 Feet Type A Male Waterproof USB Cable

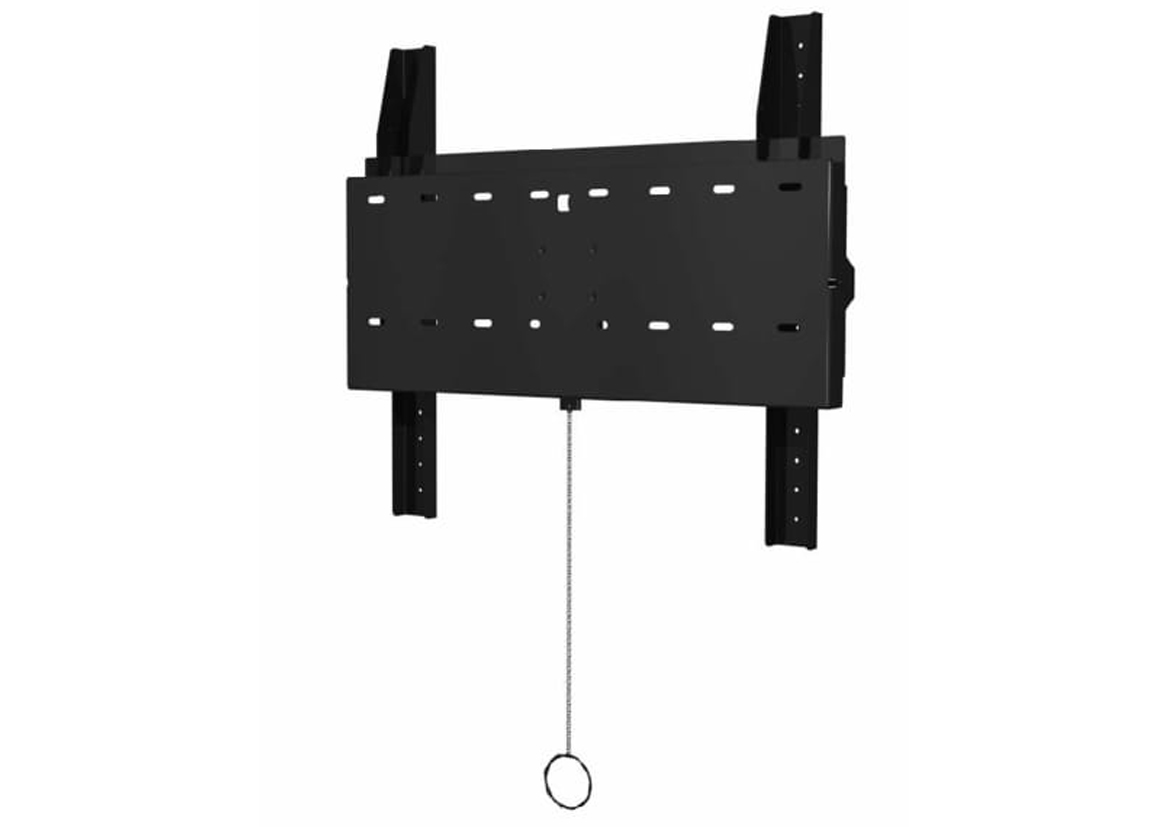

Mounting Options Item QTY Description PIC AWM-003 1 Wall Mount
-
Specifications
Specifications ARP-5542AX-E01 LCD Display Display Size 42 inch Max Resolution 1920 x 1080 Backlight Lifetime 50,000 hours Visual Characteristics Colors 1073 million Aspect Ratio 16:09 Viewing Angle (V/H) 178° / 178° Contrast Ratio 4000:01:00 Brightness 500 nits Touchscreen Technology Infrared Interface USB Driver Windows 7 & Windows 10 Enclosure NEMA 4 N/A NEMA 4x Stainless Steel 316L System CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU Chipset Bay Trail Memory Up to 8GB DDR3L SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL3.2 External Video Output N/A Storage Option Optional 2.5" SSD Compact Flash N/A Keyboard / Mouse USB Audio N/A Watchdog Timer Programmable 1 - 255 sec Remote Boot ThinManager Ready, PXE Expansion Slot N/A I/O Communication USB Port 2 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Windows 7, Windows 10 Power/Thermal Specs Power Requirement (Max) 24VDC / 7.54A Power Consumption (Max) 181 W Recommended Power Supply 259 W Heat Dissipation 618 BTU/hr Physical Information Mounting VESA Mount (Optional Wall mount) Net Weight 110 Lbs/ 50 kg Dimension (W x H x D) 42.87 x 27.29 x 5.38 inch
1089.0 x 693.05 x 136.1 mmRecommended Cutout Dimension (WxH) N/A IP/NEMA Rating Meets NEMA 4X Certification N/A Environmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% -
Ordering Information
Ordering Information ARP-5542AX-E01-006 LCD Display 42" LCD / 1920 x 1080 Touch Screen IR Enclosure Stainless Steel 316L CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU Memory 4GB DDR3 Storage N/A Remote Boot ThinManager Ready Power Supply 24VDC INPUT Ordering Information ARP-5542AX-H01-034-700 ARP-5542AX-H01-035-700 LCD Display 42" LCD / 1920 x 1080 42" LCD / 1920 x 1080 Touch Screen IR IR Enclosure Stainless Steel 316L Stainless Steel 316L CPU Intel 2.6/3.4 GHz i7-6600U Intel 2.6/3.4 GHz i7-6600U Memory 16GB DDR4 16GB DDR4 Storage 2.5" SSD 2.5" SSD Remote Boot N/A N/A Power Supply 24VDC INPUT DIN-Rail Power Supply -
Download
Document Datasheet 2D Line Drawing User Manual PDF PDF PDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series Download Download Download Download Download -
Accessories
Packing List Item QTY Description PIC CA260A 1 10 Feet 4PIN Waterproof DC Cable CA298 1 6 Feet Waterproof RJ45 Cable APS-DR1240C-24 1 240W DIN-Rail Power Supply (AC DIN-Rail Version Only) CA490 1 6 Feet DIN-Rail Input Power Cord (AC DIN-Rail Version Only) Accessories Options Item QTY Description PIC CA648 1 3 Feet Type A Male Waterproof USB Cable Mounting Options Item QTY Description PIC AWM-003 1 Wall Mount
