AP-3500-E01/H01-003

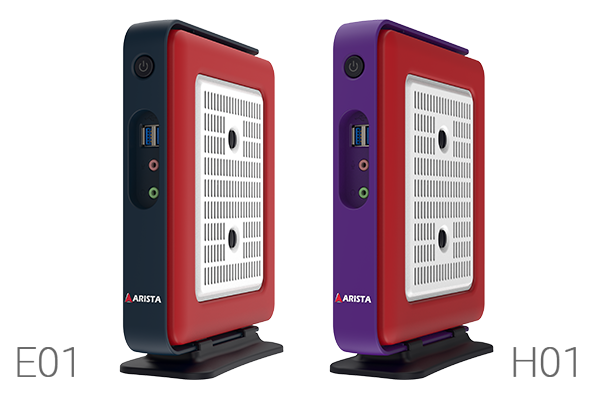

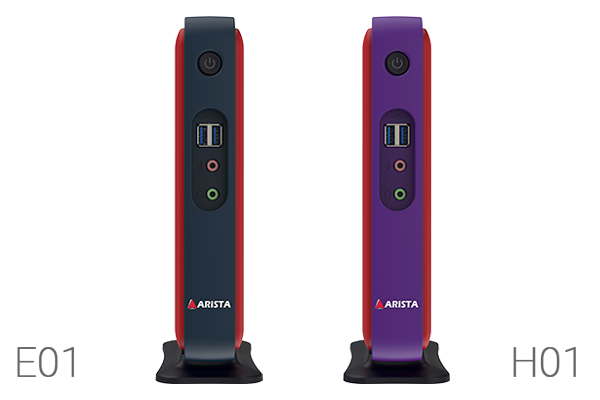

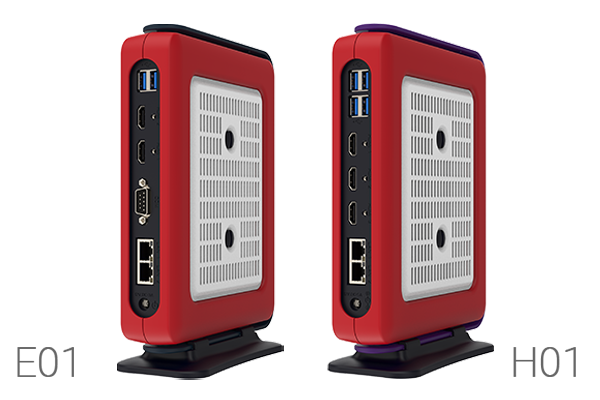

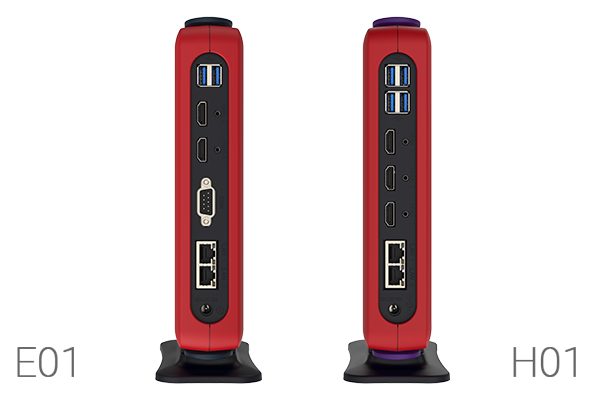

Multiple HDMI Outputs Thin Client by Desktop / VESA Mount Type
Description：
- Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU; Celeron 3955U @ 2.00GHz
- 4GB DDR3 / 4GB DDR4 SO-DIMM
- Dual 1080p / 3x 4K HDMI
- Dual Gigabit Ethernet
- ThinManager Ready, PXE Boot

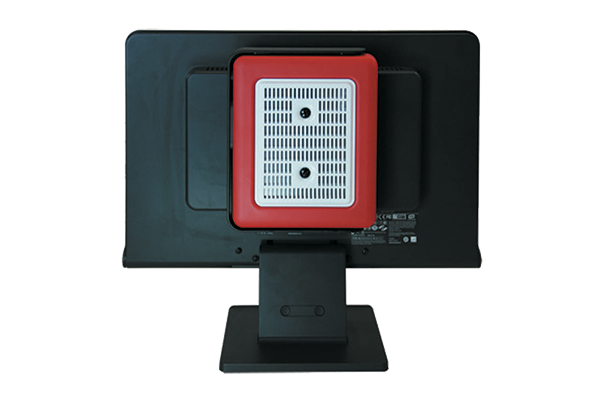

- Desktop or VESA Mount Available
Download file
-
Specifications AP-3500 E01-003 H01-003 System CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel Celeron 3955U @ 2.00GHz Chipset Bay Trail Skylake Memory 4GB DDR3 SO-DIMM 4GB DDR4 SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL3.2 Intel HD Graphics 520 Video Interface Dual HDMI 3 x HDMI Ports (Support 1x @4K/60 2x @4K/30) Storage Option N/A N/A Compact Flash N/A N/A Keyboard/Mouse USB USB Audio Mic In, Line Out Mic In, Line Out Watchdog Timer N/A N/A Remote Boot ThinManager Ready, PXE ThinManager Ready, PXE Expansion Slot Mini PCIe x 2 Mini PCIe x 1 I/O Communication USB Port 4 x USB 3.0 6 x USB (4x USB 3.0, 2 x USB 2.0) Serial Port 1 x RS-232/422/485 N/A IEEE 1394 N/A N/A LAN 2 x Gigabit 2 x Gigabit Parallel N/A N/A GPIO N/A N/A Smart Battery External Smart Battery N/A N/A OS Support OS Support N/A N/A Power / Thermal Specs. Power Requirement (Max) 12V DC / 1.05A 12V DC / 1.75A Power Consumption (Max) 13 W 21 W Recommended Power Supply 18 W 30 W Heat Dissipation 43 BTU/Hr 72 BTU/Hr Physical Information Mounting Desktop, VESA Mount option Desktop, VESA Mount option New Weight 2.75Lbs / 1.2 Kg 3Lbs / 1.36 Kg Dimension (W x H x D) 2.77 x 9.33 x 7.17 inch
70.47 x 237 x 182 mm2.77 x 9.33 x 7.17 inch
70.47 x 237 x 182 mmEnvironmental Operating Temperature 0~35°C (32~95°F) 0~35°C (32~95°F) Storage Temperature -20~60°C (-4~140°F) -20~60°C (-4~140°F) Relative Humidity 10% to 95% (non-condensing) 0% to 95% Compliance IP/NEMA Rating N/A N/A Certification FCC, CE, UL 60950-1 UL 60950-1 -
Ordering Information AP-3500-E01-003 AP-3500-E01-P03 CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUMemory 4GB DDR3 4GB DDR3 Storage N/A N/A Remote Boot ThinManager Ready PXE Power Supply 110/220V AC Input 110/220V AC Input Operating System N/A N/A Ordering Information AP-3500-H01-003 AP-3500-H01-P03 CPU Intel Celeron 3955U @ 2.00GHz Intel Celeron 3955U @ 2.00GHz Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready PXE Power Supply 110/220V AC Input 110/220V AC Input Operating System N/A N/A -
Document Datasheet 2D Line Drawing User Manual PDF E01
H01PDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download
-
Packing List Item QTY Description PIC CB003 1 6 Feet US Power Cord
FSP060-DHAN3 1 60W 12V Power Adapter (LED & 90° Angle)
ARJ7705 1 Desktop Mount AP-3500
Accessories options Item QTY Description PIC CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
APM-001 1 Power Adaptor Mounting Bracket
Mounting Options Item QTY Description PIC VESA-3500 1 VESA Mount AP-3500
-
