AP-3500-H01-003

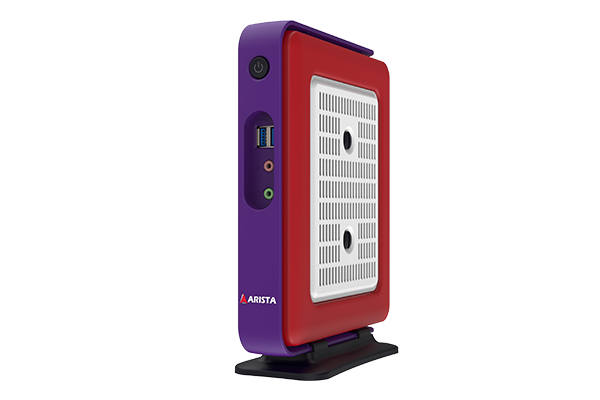

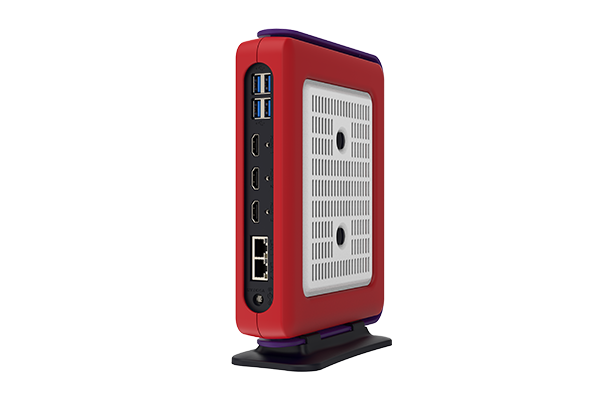

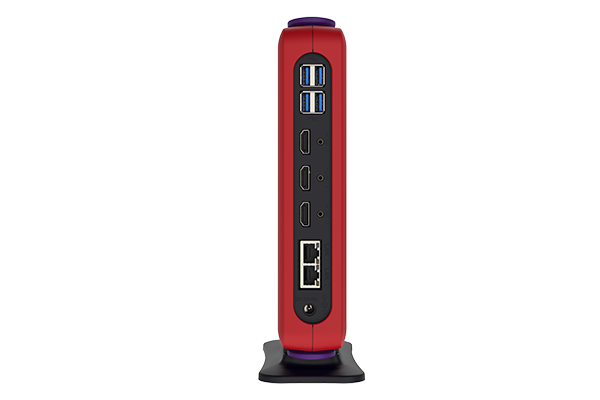

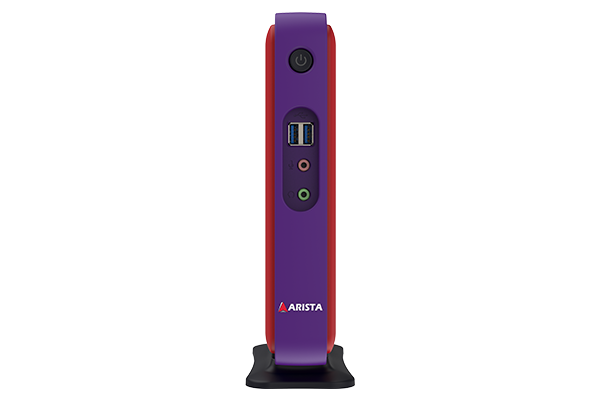

Multiple HDMI Outputs Office Grade Thin Client
Description：
- Intel Celeron 3955U @ 2.00GHz
- 4GB DDR4 SO-DIMM
- 3x 4K HDMI
- Dual Gigabit Ethernet
- ThinManager Ready, PXE Boot
- Desktop or VESA Mount Available
Download file
-
Specification AP-3500-H01-003 System CPU Intel Celeron 3955U @ 2.00GHz Chipset Skylake Memory 4GB DDR4 SO-DIMM Video Controller Intel HD Graphics 520 Video Interface 3 x HDMI Ports (Support 1x @4K/60 2x @4K/30) Storage Option N/A Compact Flash N/A Keyboard/Mouse USB Audio Mic In, Line Out Watchdog Timer N/A Remote Boot ThinManager Ready, PXE Expansion Slot Mini PCIe x 1 I/O Communication USB Port 6 x USB (4x USB 3.0, 2 x USB 2.0) Serial Port N/A IEEE 1394 N/A LAN 2 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support N/A Power / Thermal Specs. Power Requirement (Max) 12VDC / 1.75A Power Consumption (Max) 21 W Recommended Power Supply 30 W Heat Dissipation 72 BTU/Hr Physical Information Mounting Desktop, VESA Mount option New Weight 3Lbs / 1.36 Kg Dimension (W x H x D) 2.77 x 9.33 x 7.17 inch
70.47 x 237 x 182 mmEnvironmental Operating Temperature 0~35°C (32~95°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0% to 95% IP/NEMA Rating N/A Certification UL 60950-1 -
Ordering Information AP-3500-H01-003 AP-3500-H01-P03 CPU Intel Celeron 3955U @ 2.00GHz Intel Celeron 3955U @ 2.00GHz Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready PXE Power Supply 110/220VAC Input 110/220VAC Input Operating System N/A N/A -
Document Datasheet 2D Line Drawing User Manual PDF PDF PDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download
-
Packing List Item QTY Description PIC CB003 1 6 Feet US Power Cord
FSP060-DHAN3 1 60W 12V Power Adapter (LED & 90° Angle)
ARJ7705 1 Desktop Mount AP-3500
Accessories options Item QTY Description PIC CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
APM-001 1 Power Adaptor Mounting Bracket
Mounting Options Item QTY Description PIC VESA-3500 1 VESA Mount AP-3500
-
Specifications
Specification AP-3500-H01-003 System CPU Intel Celeron 3955U @ 2.00GHz Chipset Skylake Memory 4GB DDR4 SO-DIMM Video Controller Intel HD Graphics 520 Video Interface 3 x HDMI Ports (Support 1x @4K/60 2x @4K/30) Storage Option N/A Compact Flash N/A Keyboard/Mouse USB Audio Mic In, Line Out Watchdog Timer N/A Remote Boot ThinManager Ready, PXE Expansion Slot Mini PCIe x 1 I/O Communication USB Port 6 x USB (4x USB 3.0, 2 x USB 2.0) Serial Port N/A IEEE 1394 N/A LAN 2 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support N/A Power / Thermal Specs. Power Requirement (Max) 12VDC / 1.75A Power Consumption (Max) 21 W Recommended Power Supply 30 W Heat Dissipation 72 BTU/Hr Physical Information Mounting Desktop, VESA Mount option New Weight 3Lbs / 1.36 Kg Dimension (W x H x D) 2.77 x 9.33 x 7.17 inch
70.47 x 237 x 182 mmEnvironmental Operating Temperature 0~35°C (32~95°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0% to 95% IP/NEMA Rating N/A Certification UL 60950-1 -
Ordering Information
Ordering Information AP-3500-H01-003 AP-3500-H01-P03 CPU Intel Celeron 3955U @ 2.00GHz Intel Celeron 3955U @ 2.00GHz Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready PXE Power Supply 110/220VAC Input 110/220VAC Input Operating System N/A N/A -
Download
Document Datasheet 2D Line Drawing User Manual PDF PDF PDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender Download Download Download Download Download
-
Accessories
Packing List Item QTY Description PIC CB003 1 6 Feet US Power Cord FSP060-DHAN3 1 60W 12V Power Adapter (LED & 90° Angle) ARJ7705 1 Desktop Mount AP-3500 Accessories options Item QTY Description PIC CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw APM-001 1 Power Adaptor Mounting Bracket Mounting Options Item QTY Description PIC VESA-3500 1 VESA Mount AP-3500
