Waterproof Thin Client Panel PCs

1 / 5

ARP-D24AX-E01-007

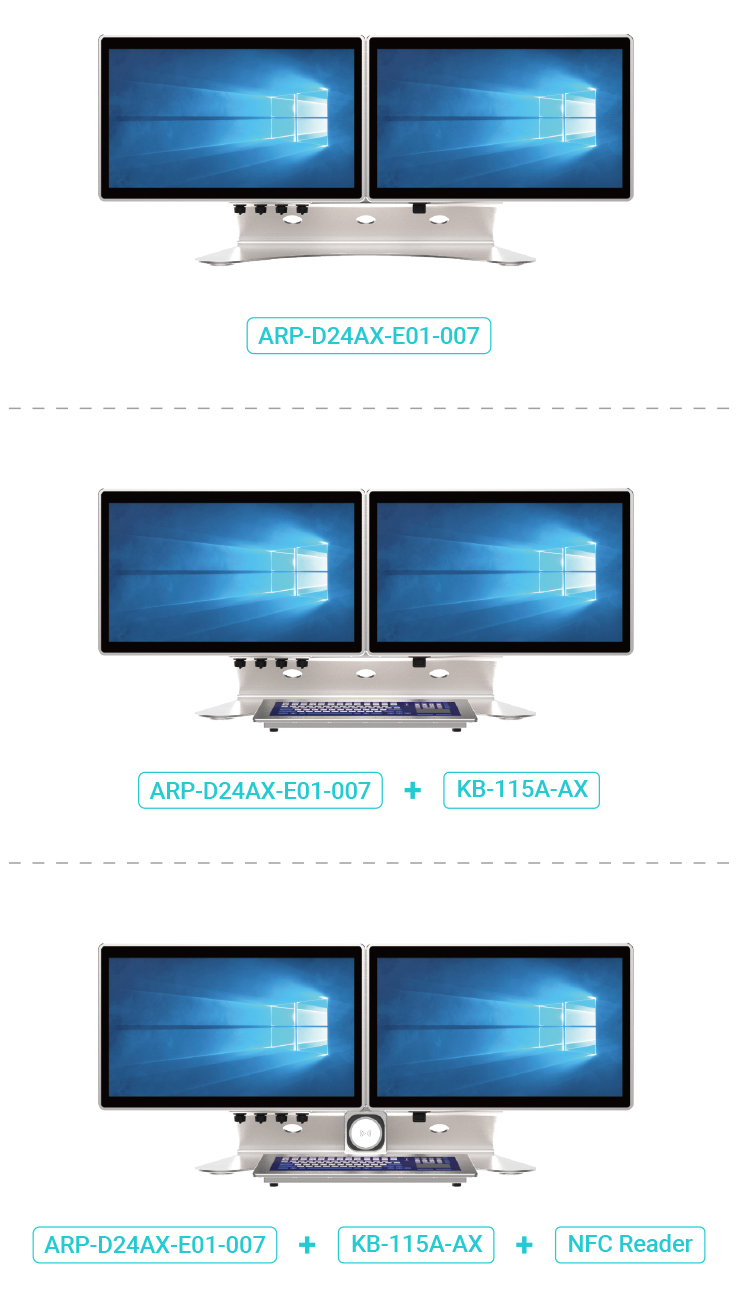

Dual NEMA 4X / IP66 Waterproof Thin Client Panel PC with 24-inch PCAP Touch Screen

Description：

Stainless Steel 316L

Specifications	ARP-D24AX-E01-007
LCD Display
Display Size	Dual 24 inch
Max Resolution	1920 x 1080
Backlight Lifetime	50,000 hours
Visual Characteristics
Colors	16.7 million
Aspect Ratio	16:9
Viewing Angle (V/H)	178° / 178°
Contrast Ratio	1000 : 1
Brightness	250 nits
Touchscreen
Technology	Projected Capacitive
Interface	USB
Driver	ThinManager Supported Driver
Enclosure
NEMA 4	N/A
NEMA 4x	Stainless Steel 316L
System
CPU	Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
Chipset	Bay Trail
Memory	Up to 4GB DDR3L SO-DIMM
Video Controller	Intel Gen7 Intel Graphics DX 11, OGL3.2
External Video Output	N/A
Storage Option	N/A
Compact Flash	N/A
Keyboard / Mouse	USB
Audio	N/A
Watchdog Timer	Programmable 1 - 255 sec
Remote Boot	ThinManager Ready, PXE
Expansion Slot	N/A
I/O Communication
USB Port	2 x USB 2.0
Serial Port	N/A
IEEE 1394	N/A
LAN	1 x Gigabit
Parallel	N/A
GPIO	N/A
Smart Battery
External Smart Battery	N/A
OS Support
OS Support	N/A
Power/Thermal Specs
Power Requirement (Max)	110~220VAC
Power Consumption (Max)	60 W
Recommended Power Supply	85 W
Heat Dissipation	203 BTU/hr
Physical Information
Mounting	Pedestal, VESA, Wall mount, Benchtop
Net Weight	- -
Dimension (W x H x D)	45.96 x 19.41 x 14.29 inch 1167.4 x 493.1 x 363 mm
Environmental
Operating Temperature	0~50°C (32~122°F)
Storage Temperature	-20~60°C (-4~140°F)
Relative Humidity	0~95%
Compliance
IP/NEMA Rating	Meets NEMA 4X / IP66
Certification	N/A

Ordering Information	ARP-D24AX-E01-007
LCD Display	Dual 24" LCD / 1920 x 1080
Touch Screen	Projected Capacitive
Enclosure	Stainless Steel 316L
CPU	Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
Memory	4GB DDR3
Storage	N/A
Remote Boot	ThinManager Ready
Power Supply	110~220VAC

Document	Datasheet	2D Line Drawing	User Manual
	PDF	PDF	N/A

Specifications

Specifications	ARP-D24AX-E01-007
LCD Display
Display Size	Dual 24 inch
Max Resolution	1920 x 1080
Backlight Lifetime	50,000 hours
Visual Characteristics
Colors	16.7 million
Aspect Ratio	16:9
Viewing Angle (V/H)	178° / 178°
Contrast Ratio	1000 : 1
Brightness	250 nits
Touchscreen
Technology	Projected Capacitive
Interface	USB
Driver	ThinManager Supported Driver
Enclosure
NEMA 4	N/A
NEMA 4x	Stainless Steel 316L
System
CPU	Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
Chipset	Bay Trail
Memory	Up to 4GB DDR3L SO-DIMM
Video Controller	Intel Gen7 Intel Graphics DX 11, OGL3.2
External Video Output	N/A
Storage Option	N/A
Compact Flash	N/A
Keyboard / Mouse	USB
Audio	N/A
Watchdog Timer	Programmable 1 - 255 sec
Remote Boot	ThinManager Ready, PXE
Expansion Slot	N/A
I/O Communication
USB Port	2 x USB 2.0
Serial Port	N/A
IEEE 1394	N/A
LAN	1 x Gigabit
Parallel	N/A
GPIO	N/A
Smart Battery
External Smart Battery	N/A
OS Support
OS Support	N/A
Power/Thermal Specs
Power Requirement (Max)	110~220VAC
Power Consumption (Max)	60 W
Recommended Power Supply	85 W
Heat Dissipation	203 BTU/hr
Physical Information
Mounting	Pedestal, VESA, Wall mount, Benchtop
Net Weight	- -
Dimension (W x H x D)	45.96 x 19.41 x 14.29 inch 1167.4 x 493.1 x 363 mm
Environmental
Operating Temperature	0~50°C (32~122°F)
Storage Temperature	-20~60°C (-4~140°F)
Relative Humidity	0~95%
Compliance
IP/NEMA Rating	Meets NEMA 4X / IP66
Certification	N/A

Ordering Information

Ordering Information	ARP-D24AX-E01-007
LCD Display	Dual 24" LCD / 1920 x 1080
Touch Screen	Projected Capacitive
Enclosure	Stainless Steel 316L
CPU	Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
Memory	4GB DDR3
Storage	N/A
Remote Boot	ThinManager Ready
Power Supply	110~220VAC

Download

Document	Datasheet	2D Line Drawing	User Manual
	PDF	PDF	N/A
