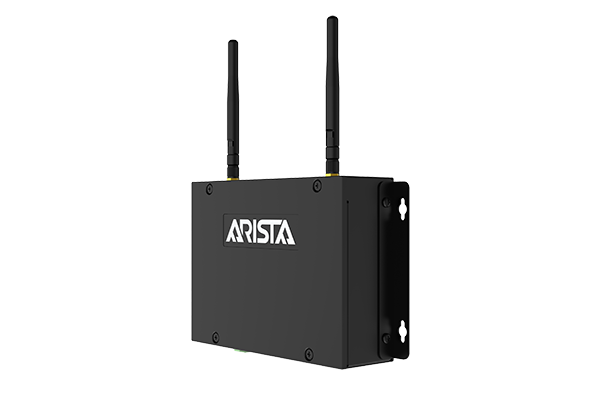

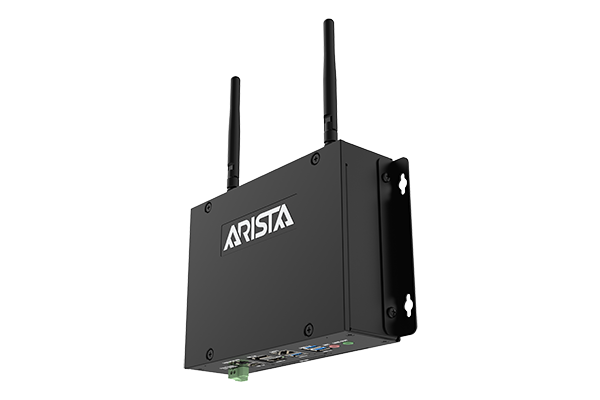

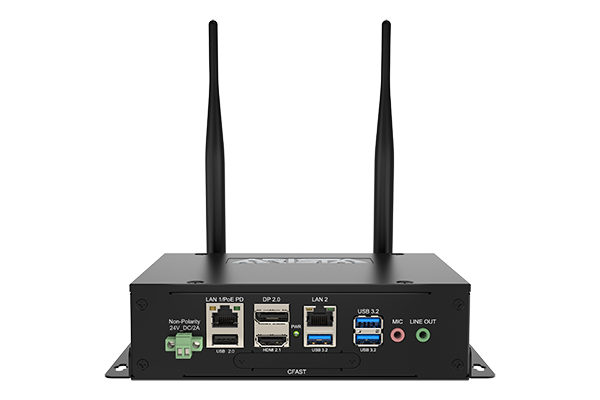

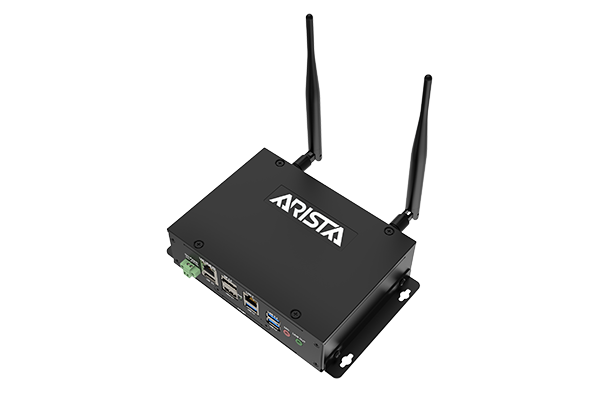

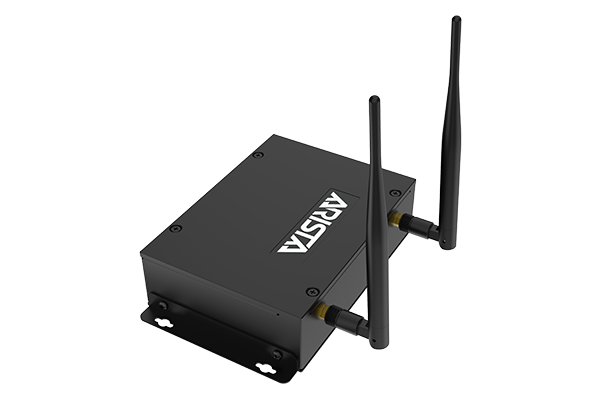

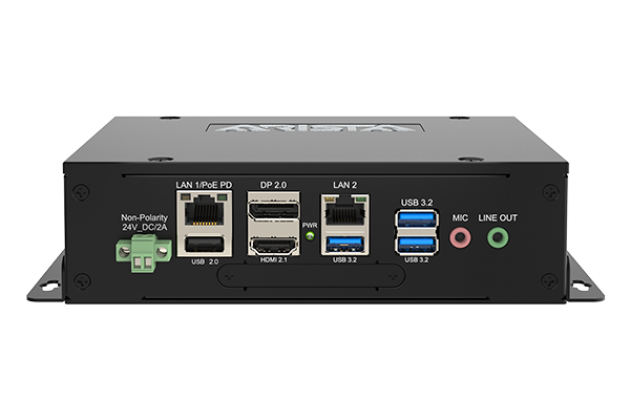

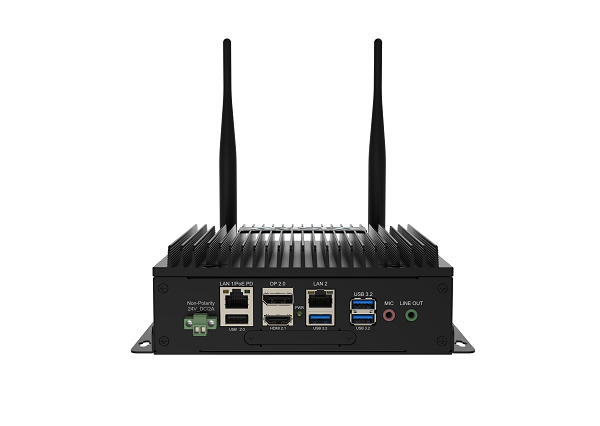

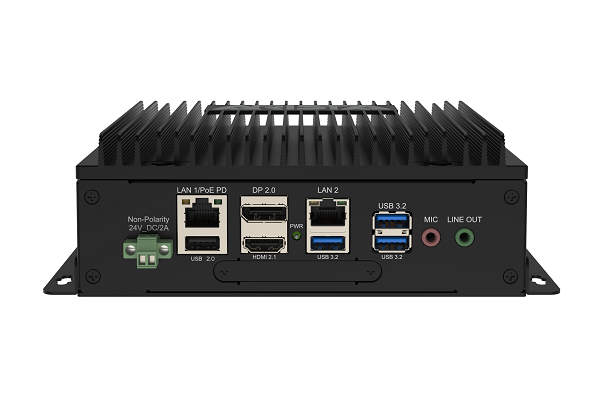

MicroBox-7521B-K01

Fanless Compact Industrial Computer with Intel 12th Gen N-Series CPU, Fanless, 24VDC

Description：

Intel 12th Gen N200/i3-N305 CPU
Up to 16GB DDR4 SO-DIMM
M.2 NVMe SSD Storage Option
1 x 2.5 Gigabit, 1 x Gigabit
DP + HDMI Dual Display Ports
3 x USB 3.2, 1 x USB 2.0
24VDC Operating Input Voltage
Powerd by 802.3bt PoE option
ThinManager WIFI Boot option

Please refer to ordering information for the specific configurations for your applications.

Specifications	MicroBox-7521B-K01
System
CPU	Intel N200 / N305
Chipset	Alder Lake
Memory	Up to 16GB DDR4 SO-DIMM
Video Controller	Intel® UHD Graphics
Video Interface	4K Resolution
Storage Option	M.2 NvMe SSD
Compact Flash	N/A
Keyboard/Mouse	USB
Audio	Line Out, Mic
Watchdog Timer	Yes
Remote Boot	ThinManager Ready
Expansion Slot	N/A
I/O Communication
USB Port	3 x USB 3.2, 1 x USB 2.0
Serial Port	N/A
IEEE 1394	N/A
LAN	1 x 2.5 Gigabit, 1 x Gigabit
Parallel	N/A
GPIO	N/A
Smart Battery
External Smart Battery	N/A
OS Support
OS Support	Windows 10/11
Power / Thermal Specs
Power Requirement (Max)	24VDC / 1.3A or Powered by PoE 802.3bt
Power Consumption (Max)	31 W
Recommended Power Supply	24VDC / 2.0A or Powered by PoE 802.3bt
Heat Dissipation	106 BTU/hr
Physical Information
Mounting	Wall Mount
Net Weight	2.2 Lbs / 1.0 Kg
Dimension (W x H x D)	7.72 x 1.89 x 4.87 inch 196 x 48 x 123.7 mm
Environmental
Operating Temperature	0~50ºC (32~122ºF)
Storage Temperature	-20~60ºC (-4~140ºF)
Relative Humidity	0~95%
Compliance
IP/NEMA Rating	Meets IP50
Certification	N/A

Ordering Information	MicroBox-7521B-K01-003-001	MicroBox-7521B-K01-031-301
CPU	N200 CPU	Intel i3-N305 CPU
Memory	4GB DDR4	16GB DDR4
Storage	N/A	M.2 NVMe SSD
Remote Boot	ThinManager Ready	N/A
Power Supply	60W Input Power Adaptor	60W Input Power Adaptor
Operating System	N/A	Optional
WIFI	802.11AX WIFI 6	802.11AX WIFI 6

Document	Datasheet	2D Line Drawing	User Manual
	PDF	PDF	N/A

Driver
	Windows 7 32bit	Windows 7 64bit	Windows 10 32bit	Windows 10 64bit	Windows 11 64bit
Chipset	--	--	--	--	--
Graphics	--	--	--	--	--
RAID	--	--	--	--	--
ME (Management Engine)	--	--	Intel ME (SW_2413.5.67.0)	Intel ME (SW_2413.5.67.0)	--

Brochure	Brochure	Brochure	Datasheet	Flyer
Pharma Manufacturing	Industrial Thin Client	Industrial KVM Extender	Powered by PoE Series	Industrial KVM Extender

Download	Download	Download	Download	Download

Datasheet	Datasheet	Datasheet
Fanless Compact Computers	Expandable Fanless Computers	Rack Mount Computers

Download	Download	Download

Packing List
Item	QTY	Description	PIC
APS-DR1072F-24	1	72W DIN-Rail Power Supply (AC DIN-Rail Version Only)
FSP060-DAAN3-2P-T	1	60W 24V Power Adapter (2 Pin Green Terminal Block)
CB003	1	6 Feet US Power Cord (AC Power Adapter Version Only)

Accessories Options
Item	QTY	Description	PIC
CB001	1	6 Feet M-M VGA Cable
CA521	1	6 FEET M-M HDMI Cable with M3 Lock Screw
BAT-02	1	2800mAh Rechargeable Smart Battery

Mounting Options
Item	QTY	Description	PIC
VESA-7824	1	VESA Mount MicroBox-7824B-E01/E02 ARC06702-B
