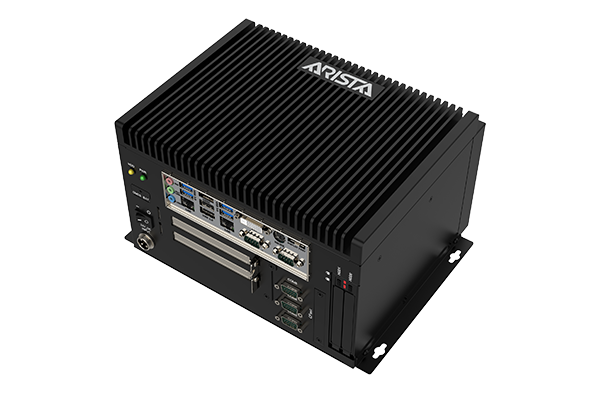

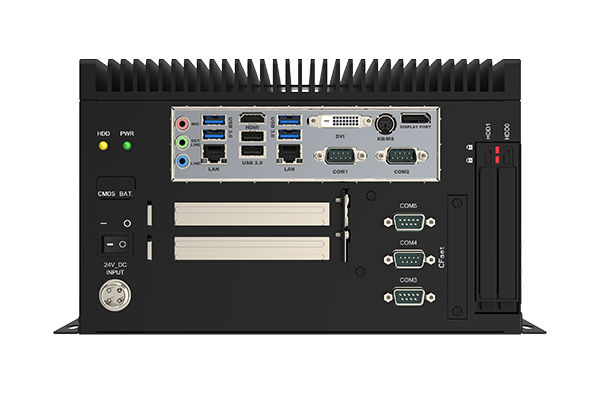

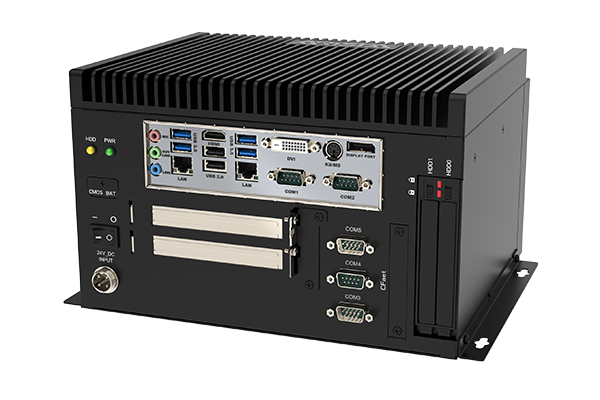

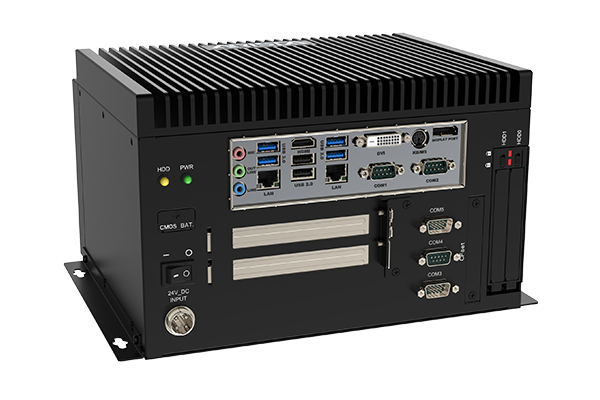

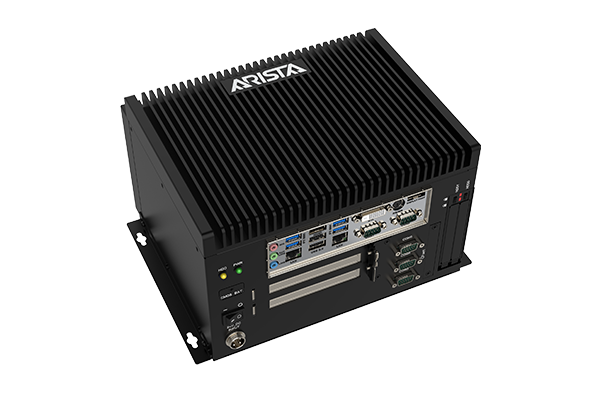

BoxPC-238-J01
Expandable Fanless Computers, 2x PCIex8 Expansion Slots
Description：
- Intel i7-10700T Processor
- Up to 64GB DDR4 SO-DIMM
- 1x 2.5G, 1x Gigabit LANs
- 2x PCIex8
- 2.5" SATA SSD, M.2 NVMe SSD Options
Please refer to ordering information for the specific configurations for your applications.
-
Specifications BoxPC-238-J01 System CPU Intel i7-10700T Chipset Intel Q470E Memory Up to 64GB DDR4 Video Controller Intel® HD Gen9 Graphics Video Interface DVI, HDMI, Display Port Storage Option Up tp 2x 2.5" SATA SSD NVMe 1x M.2 (2280) Keyboard/Mouse PS/2, USB Audio Line In, Line Out, Mic Watchdog Timer None Remote Boot PXE Expansion Slot 2 x PCIex8 I/O Communication USB Port 4x USB 3.2 (Gen1), 2x USB 2.0 Serial Port 2x RS-232 IEEE 1394 N/A LAN 1x 2.5G, 1x Gigabit LANs Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Win 10, 11 Pro Power / Thermal Specs Power Requirement (Max) 24 VDC / 3A Power Consumption (Max) 73 W Heat Dissipation 246 BTU Physical Information Mounting Wall Mount Net Weight 10 Lbs / 4.53 Kg Dimension (W x H x D) 11.56 x 6.24 x 8.59 inch
293.6 x 158.6 x 218.3 mmRecommended Cutout Dimension (WxH) N/A Environmental Operating Temperature 0~50ºC (32~122ºF) Storage Temperature -20~60ºC (-4~140ºF) Relative Humidity 0~95% Compliance IP/NEMA Rating Meets IP50 Certification - - -
Item BoxPC-238-J01-021-DR BoxPC-238-J01-031-DR CPU i7-10700T i7-10700T Memory 32GB DDR4 64GB DDR4 RAID N/A N/A Storage 2.5" SATA SSD 500GB 2.5" SATA SSD 500GB Remote Boot N/A N/A Power Supply 110/220VAC Input DIN-Rail 110/220VAC Input DIN-Rail Item BoxPC-238-J01-061-DR BoxPC-238-J01-071-DR CPU i7-10700T i7-10700T Memory 32GB DDR4 64GB DDR4 RAID N/A N/A Storage 2.5" SATA SSD 500GB in RAID 2.5" SATA SSD 500GB in RAID Remote Boot N/A N/A Power Supply 110/220VAC Input DIN-Rail 110/220VAC Input DIN-Rail Item BoxPC-238-J01-091-DR BoxPC-238-J01-0B1-DR CPU i7-10700T i7-10700T Memory 64GB DDR4 64GB DDR4 RAID N/A N/A Storage 2.5" SATA SSD 1TB 2.5" SATA SSD 1TB in RAID Remote Boot N/A N/A Power Supply 110/220VAC Input DIN-Rail 110/220VAC Input DIN-Rail -
Document Datasheet 2D Line Drawing User Manual PDF PDF N/A Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Fanless Compact Computers Expandable Fanless Computers Rack Mount Computers
Download Download Download -
Packing List Item QTY Description PIC APS-DR1150F-24 1 150W DIN-Rail Power Supply (AC DIN-Rail Version Only)
CA489 1 10 Feet 4PIN Circular DC-DC Cable (AC DIN-Rail and DC Version Only)
CA490 1 6 Feet DIN-Rail Input Power Cord (AC DIN-Rail Version Only)
FRA150-S240-4 1 150W 4PIN Circular Power Adapter (AC Power Adapter Version Only)
CB003 1 6 Feet US Power Cord (AC Power Adapter Version Only)
VHDCITO4HDMI 1 VHDCI to 4 x HDMI Adapter Cable (ACP HDMI Version Only)
Accessories Options Item QTY Description PIC CB390 1 6 Feet M-M DVI-D Dual Link Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
CA647 1 6 FEET M-M Display Port Cable
-
Specifications
Specifications BoxPC-238-J01 System CPU Intel i7-10700T Chipset Intel Q470E Memory Up to 64GB DDR4 Video Controller Intel® HD Gen9 Graphics Video Interface DVI, HDMI, Display Port Storage Option Up tp 2x 2.5" SATA SSD NVMe 1x M.2 (2280) Keyboard/Mouse PS/2, USB Audio Line In, Line Out, Mic Watchdog Timer None Remote Boot PXE Expansion Slot 2 x PCIex8 I/O Communication USB Port 4x USB 3.2 (Gen1), 2x USB 2.0 Serial Port 2x RS-232 IEEE 1394 N/A LAN 1x 2.5G, 1x Gigabit LANs Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Win 10, 11 Pro Power / Thermal Specs Power Requirement (Max) 24 VDC / 3A Power Consumption (Max) 73 W Heat Dissipation 246 BTU Physical Information Mounting Wall Mount Net Weight 10 Lbs / 4.53 Kg Dimension (W x H x D) 11.56 x 6.24 x 8.59 inch
293.6 x 158.6 x 218.3 mmRecommended Cutout Dimension (WxH) N/A Environmental Operating Temperature 0~50ºC (32~122ºF) Storage Temperature -20~60ºC (-4~140ºF) Relative Humidity 0~95% Compliance IP/NEMA Rating Meets IP50 Certification - - -
Ordering Information
Item BoxPC-238-J01-021-DR BoxPC-238-J01-031-DR CPU i7-10700T i7-10700T Memory 32GB DDR4 64GB DDR4 RAID N/A N/A Storage 2.5" SATA SSD 500GB 2.5" SATA SSD 500GB Remote Boot N/A N/A Power Supply 110/220VAC Input DIN-Rail 110/220VAC Input DIN-Rail Item BoxPC-238-J01-061-DR BoxPC-238-J01-071-DR CPU i7-10700T i7-10700T Memory 32GB DDR4 64GB DDR4 RAID N/A N/A Storage 2.5" SATA SSD 500GB in RAID 2.5" SATA SSD 500GB in RAID Remote Boot N/A N/A Power Supply 110/220VAC Input DIN-Rail 110/220VAC Input DIN-Rail Item BoxPC-238-J01-091-DR BoxPC-238-J01-0B1-DR CPU i7-10700T i7-10700T Memory 64GB DDR4 64GB DDR4 RAID N/A N/A Storage 2.5" SATA SSD 1TB 2.5" SATA SSD 1TB in RAID Remote Boot N/A N/A Power Supply 110/220VAC Input DIN-Rail 110/220VAC Input DIN-Rail -
Download
Document Datasheet 2D Line Drawing User Manual PDF PDF N/A Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender Download Download Download Download Download Datasheet Datasheet Datasheet Fanless Compact Computers Expandable Fanless Computers Rack Mount Computers Download Download Download -
Accessories
Packing List Item QTY Description PIC APS-DR1150F-24 1 150W DIN-Rail Power Supply (AC DIN-Rail Version Only) CA489 1 10 Feet 4PIN Circular DC-DC Cable (AC DIN-Rail and DC Version Only) CA490 1 6 Feet DIN-Rail Input Power Cord (AC DIN-Rail Version Only) FRA150-S240-4 1 150W 4PIN Circular Power Adapter (AC Power Adapter Version Only) CB003 1 6 Feet US Power Cord (AC Power Adapter Version Only) VHDCITO4HDMI 1 VHDCI to 4 x HDMI Adapter Cable (ACP HDMI Version Only) Accessories Options Item QTY Description PIC CB390 1 6 Feet M-M DVI-D Dual Link Cable CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw CA647 1 6 FEET M-M Display Port Cable
