Large Format Thin Client Panel PCs

  • Home
  • Products
  • Thin Clients
  • Large Format Thin Client Panel PCs
1 / 5

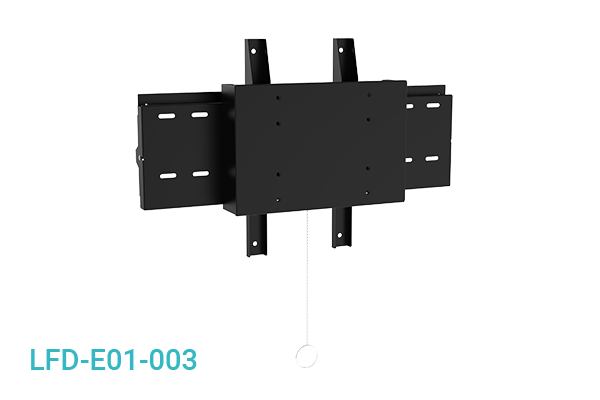

LFD-E01-003

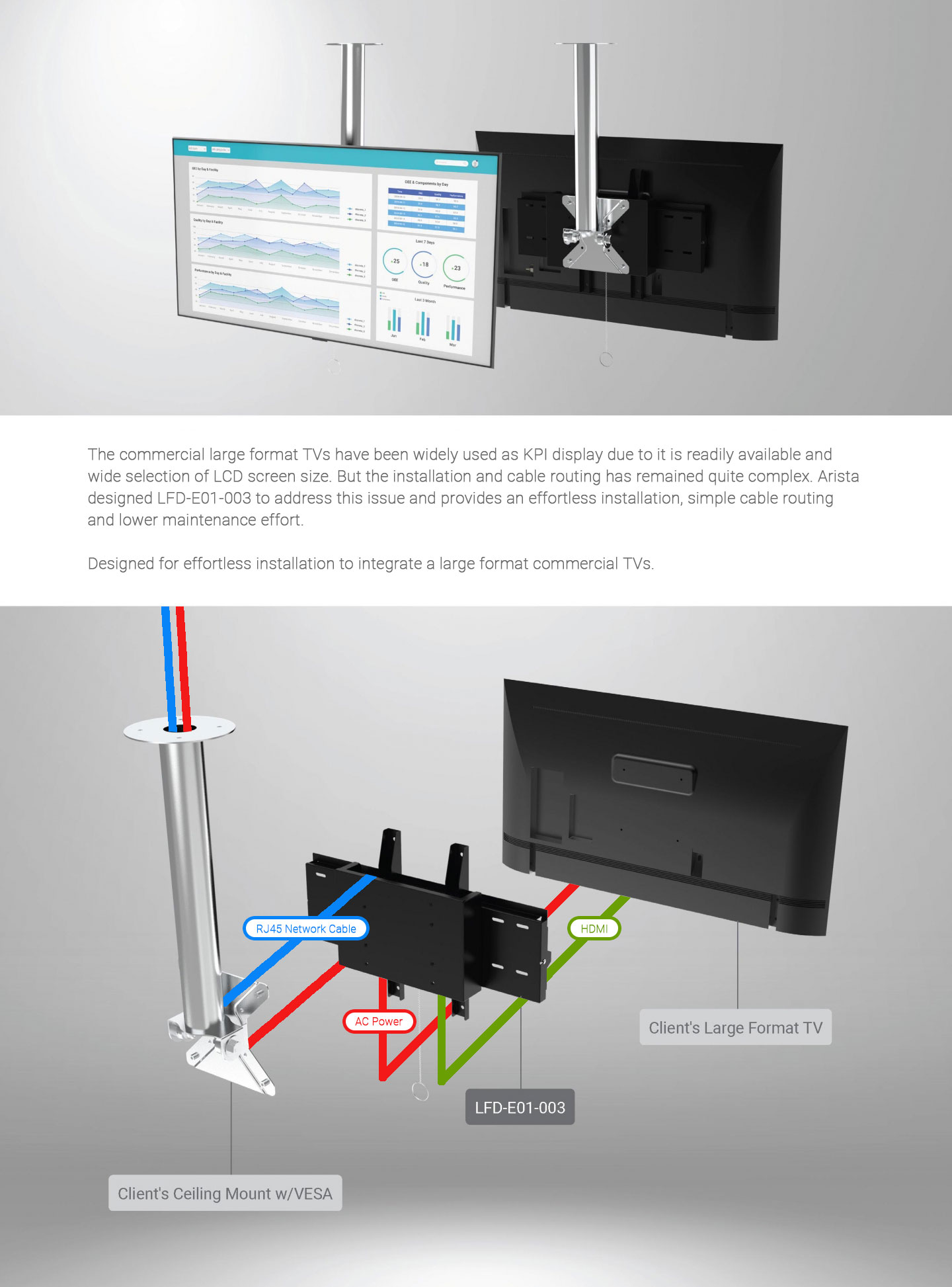

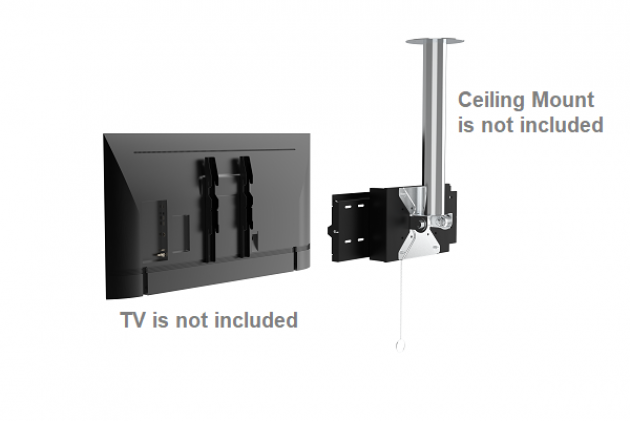

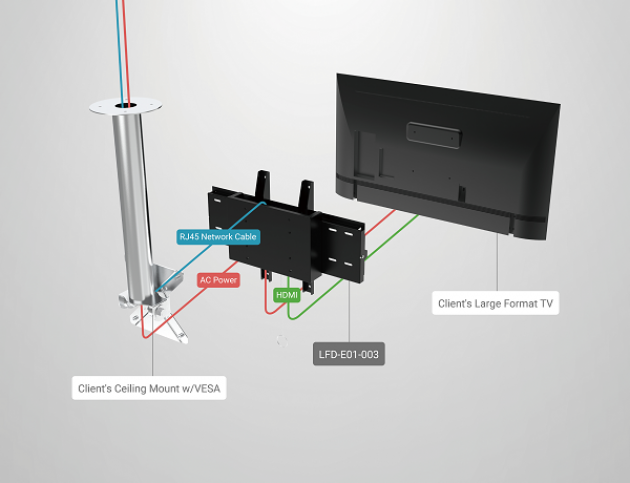

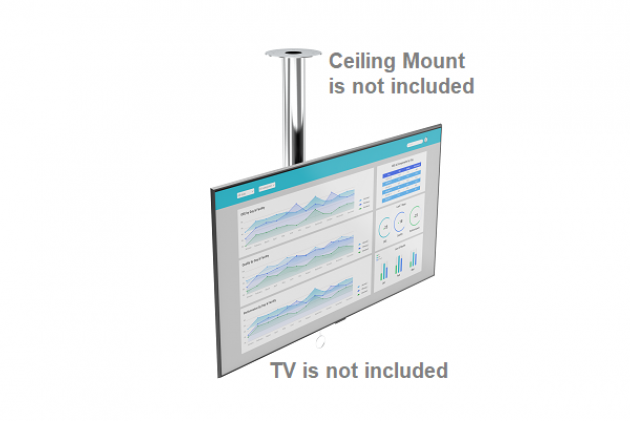

Ceiling Mount Industrial Thin Client for Large Format TV Integration
Description：
  • Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
  • 4GB DDR3 SO-DIMM
  • Dual Gigabit Ethernet
  • 2 x RS-232/422/485 BIOS Selectable
  • 5 x USB 2.0 ports

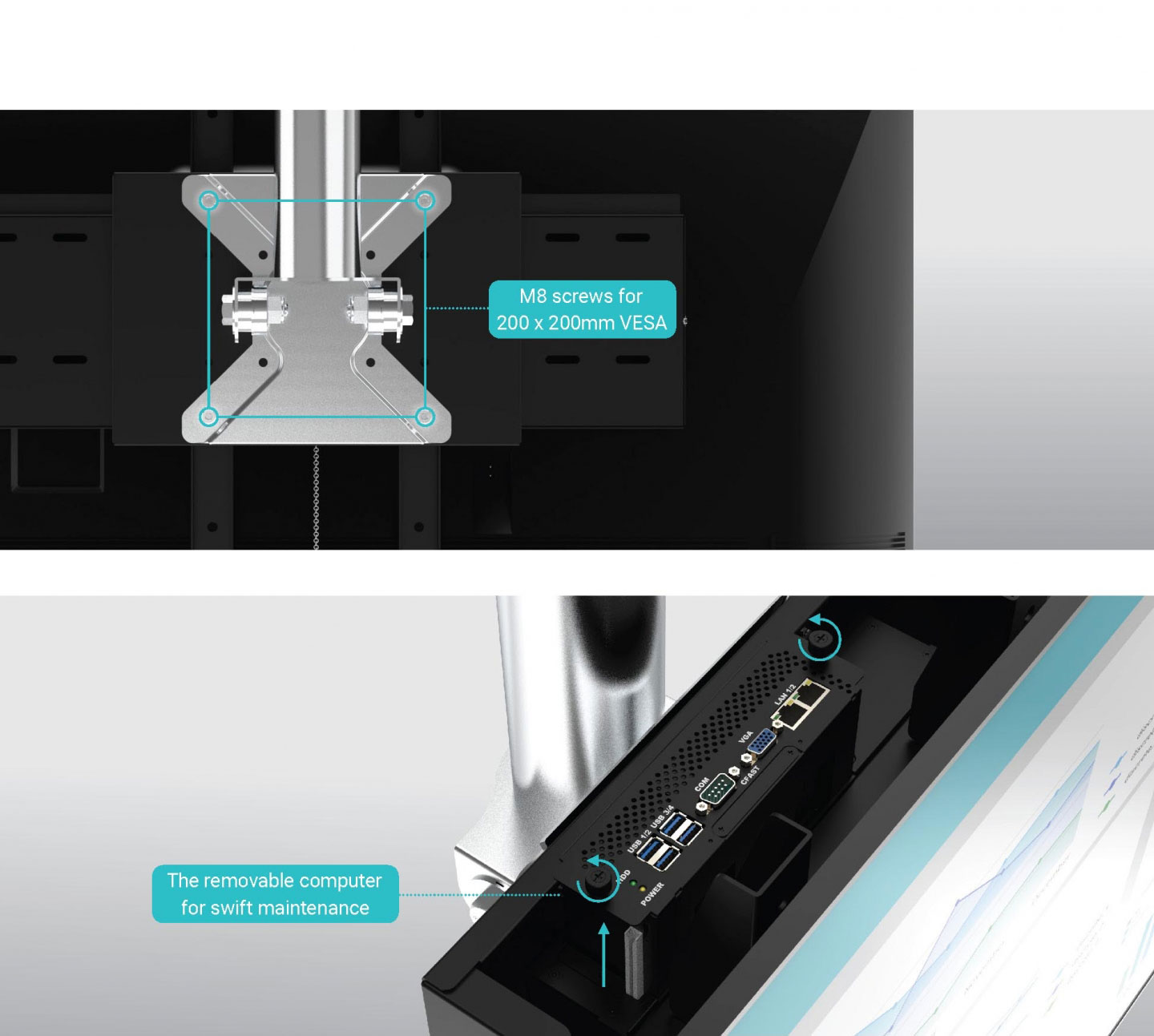

  • Swappable CPU Module
  • ThinManager Ready
  • Details
  • Applications
  • Specifications
  • Ordering Information
  • Download
  • Accessories
  •

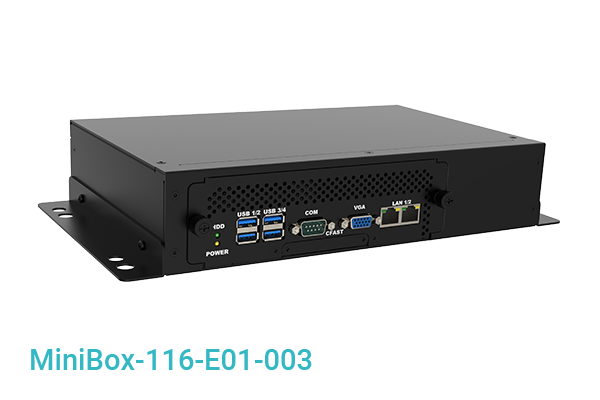

    Specifications MiniBox-116-E01-003
     System
     CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
     Chipset     Bay Trail
     Memory  4GB DDR3 SO-DIMM
     Video Controller      Intel Gen7 Intel Graphics DX 11, OGL3.2
     Storage Option  N/A
     Compact Flash          N/A
     Keyboard / Mouse      USB
     Audio        Line Out
     Watchdog Timer  N/A
     Remote Boot      ThinManager Ready
     Expansion Slot  N/A

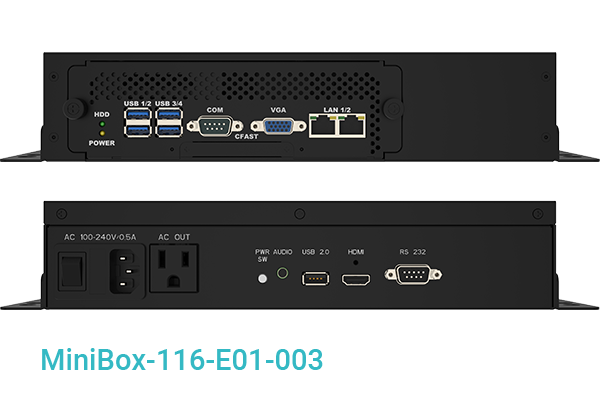

     I/O Communication
     USB Port  5 x USB 2.0 for USB Devices
     Serial Port  2 x RS-232/422/485 BIOS Selectable
     IEEE 1394      N/A
     LAN  2 x Gigabit
     Parallel  N/A
     GPIO       N/A
     Smart Battery
     External Smart Battery       N/A
     OS Support
     OS Support  N/A
     Power/Thermal Specs

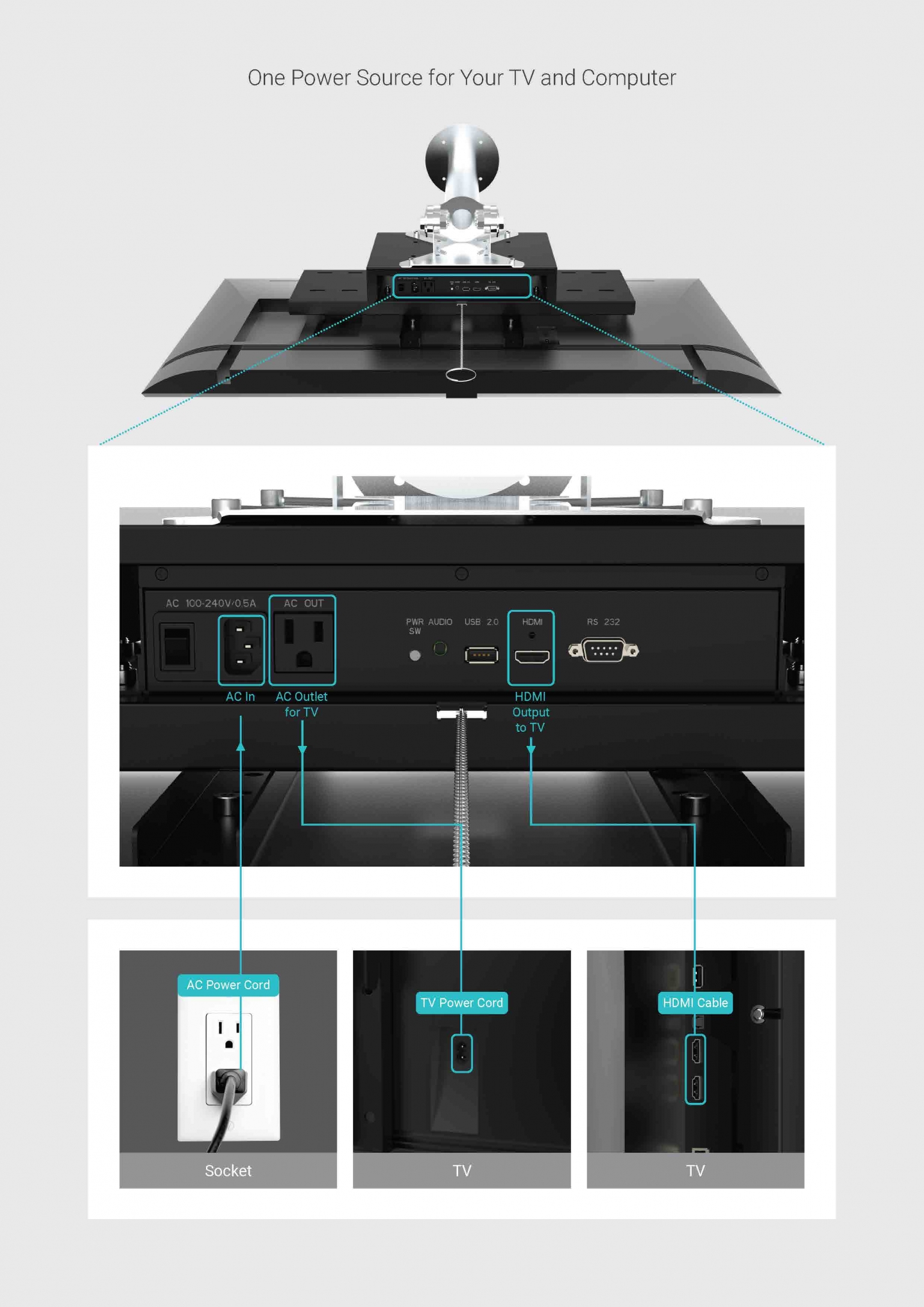

     Power Requirement (Max)  110V AC @0.2A
     Power Consumption (Max)  17 W
     Recommended Power Supply  110V AC @0.2A
     Heat Dissipation  58 BTU/hr
     Physical Information
     Mounting       Wall mount
     Net Weight
     Dimension (W x H x D)  12.99 x 2.46 x 6.93 inch
     330 x 62.5 x 176.1 mm
     Environmental
     Operating Temperature  0~50°C (32~122°F)
     Storage Temperature  -20~60°C (-4~140°F)
     Relative Humidity  0~95%
     Compliance
     IP/NEMA Rating  Meets IP50
     Certification  N/A

  • Ordering Information  MiniBox-116-E01-003
     CPU  Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
     Memory  4GB DDR3
     Storage  N/A
     Remote Boot  ThinManager Ready
     Power Supply  110/220V AC Input

  • Document Datasheet 2D Line Drawing Brochure
      Coming soon LFD-E01-003
    MiniBox-116-E01-003    		 PDF

    Driver
    Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN
    Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN


    Brochure Brochure Brochure Datasheet Flyer
    Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
    Download Download Download Download Download


    Datasheet Datasheet Datasheet Datasheet Datasheet
    ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
    Download Download Download Download Download


    Datasheet Datasheet Datasheet Datasheet Datasheet
    ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
    Download Download Download Download Download



  • Packing List
    Item QTY Description PIC
    CB003 1 6 Feet US Power Cord
  • Details
  • Applications
  • Specifications

    Specifications MiniBox-116-E01-003
     System
     CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
     Chipset     Bay Trail
     Memory  4GB DDR3 SO-DIMM
     Video Controller      Intel Gen7 Intel Graphics DX 11, OGL3.2
     Storage Option  N/A
     Compact Flash          N/A
     Keyboard / Mouse      USB
     Audio        Line Out
     Watchdog Timer  N/A
     Remote Boot      ThinManager Ready
     Expansion Slot  N/A
     I/O Communication
     USB Port  5 x USB 2.0 for USB Devices
     Serial Port  2 x RS-232/422/485 BIOS Selectable
     IEEE 1394      N/A
     LAN  2 x Gigabit
     Parallel  N/A
     GPIO       N/A
     Smart Battery
     External Smart Battery       N/A
     OS Support
     OS Support  N/A
     Power/Thermal Specs
     Power Requirement (Max)  110V AC @0.2A
     Power Consumption (Max)  17 W
     Recommended Power Supply  110V AC @0.2A
     Heat Dissipation  58 BTU/hr
     Physical Information
     Mounting       Wall mount
     Net Weight
     Dimension (W x H x D)  12.99 x 2.46 x 6.93 inch
     330 x 62.5 x 176.1 mm
     Environmental
     Operating Temperature  0~50°C (32~122°F)
     Storage Temperature  -20~60°C (-4~140°F)
     Relative Humidity  0~95%
     Compliance
     IP/NEMA Rating  Meets IP50
     Certification  N/A

  • Ordering Information
    Ordering Information  MiniBox-116-E01-003
     CPU  Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
     Memory  4GB DDR3
     Storage  N/A
     Remote Boot  ThinManager Ready
     Power Supply  110/220V AC Input

  • Download
    Document Datasheet 2D Line Drawing Brochure
      Coming soon LFD-E01-003
    MiniBox-116-E01-003    		 PDF

    Driver
    Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset --
    Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN
    Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN


    Brochure Brochure Brochure Datasheet Flyer
    Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
    Download Download Download Download Download


    Datasheet Datasheet Datasheet Datasheet Datasheet
    ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
    Download Download Download Download Download


    Datasheet Datasheet Datasheet Datasheet Datasheet
    ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
    Download Download Download Download Download



  • Accessories
    Packing List
    Item QTY Description PIC
    CB003 1 6 Feet US Power Cord
Back to the top

Subscribe e-Newsletter

Subscription
>Cancel

Contact Us

Contact us by email or phone. Our representatives will assist you with new products and services, or answer your questions.

View more

Copyright © ARISTA Corporation. All rights reserved.

Cookie Policy | Privacy Policy

Recommend using Chrome, Firefox, Safari latest version of the browser.
256 bit SSL Encryption
