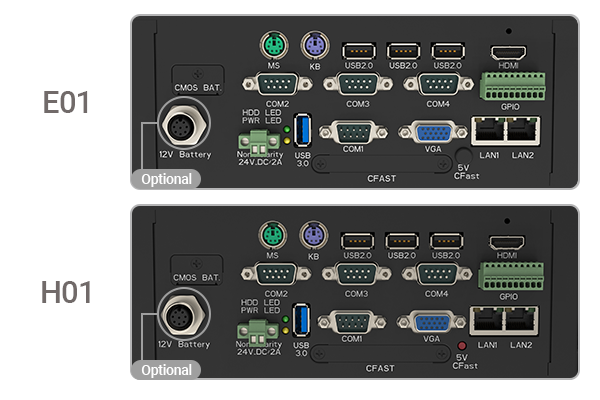

MicroBox-7824B-E01 / H01
Fanless Compact Computer with Intel Atom CPU/ Intel 6th Gen Core-I CPU, Fanless, 24VDC
Description：
- Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU; Intel i7-6600U CPU
- Up to 8GB DDR3 / Up to 16GB DDR4 SO-DIMM
- 2.5" SSD and SATA DOM Storage Option
- Dual Gigabit Ethernet
- VGA + HDMI Dual Display Ports
- 4 x RS-232/422/485 BIOS Selectable
- 1 x USB 3.0, 3 x USB 2.0
- 4-bit DI, 4-bit DO
- 24VDC Operating Input Voltage
- External Smart Battery Option
Please refer to ordering information for the specific configurations for your applications.
-
-
Model Name MicroBox-7824B-E01 MicroBox-7824B-H01 System CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel i7-6600U CPU Chipset Bay Trail Skylake Memory Up to 8GB DDR3 SO-DIMM Up to 16GB DDR4 SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL3.2 Intel HD Graphics 520 Video Interface VGA & HDMI VGA & HDMI Storage Option 2.5" SSD 2.5" SSD CFast Optional Optional Keyboard/Mouse USB / PS2 USB / PS2 Audio N/A N/A Watchdog Timer YES YES Remote Boot ThinManager Ready, PXE PXE Expansion Slot Mini PCIe x 2 Mini PCIe x 1 I/O Communication USB Port 1 x USB 3.0, 3 x USB 2.0 1 x USB 3.0, 3 x USB 2.0 Serial Port 4 x RS-232/422/485 BIOS Selectable 4 x RS-232/422/485 BIOS Selectable IEEE 1394 N/A N/A LAN 2 x Gigabit 2 x Gigabit Parallel N/A N/A GPIO 4 x DI, 4x DO 4 x DI, 4x DO Smart Battery External Smart Battery Optional Optional OS Support OS Support Windows 7 & 10 Windows 10 Power / Thermal Specs Power Requirement (Max) 24V DC / 0.7A 24V DC / 2.0A Power Consumption (Max) 17W 48W Recommended Power Supply 24W 68W Heat Dissipation 58 BTU/hr 164 BTU/hr Physical Information Mounting Wall Mount, DIN-Rail Mount Wall Mount, DIN-Rail Mount Net Weight 5.1 Lbs / 2.3Kg 5.1 Lbs / 2.3Kg Dimension (W x H x D) 8.83 x 3.47 x 5.50 inch
224.4 x 80.2 x 139.7 mm8.83 x 3.47 x 5.50 inch
224.4 x 80.2 x 139.7 mmEnvironmental Operating Temperature 0~50ºC (32~122ºF) 0~50ºC (32~122ºF) Storage Temperature -20~60ºC (-4~140ºF) -20~60ºC (-4~140ºF) Relative Humidity 0~95% 0~95% Compliance IP/NEMA Rating meets IP50 meets IP50 Certification FCC, CE, UL 61010 UL 61010 -
Ordering Information MicroBox-7824B-E01-003-DR MicroBox-7824B-E01-P03-DR CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUMemory 4GB DDR3 4GB DDR3 Storage N/A N/A Remote Boot ThinManager Ready PXE Power Supply 110/220V AC Input DIN-Rail 110/220V AC Input DIN-Rail Operating System N/A N/A Ordering Information MicroBox-7824B-E01-031-DR MicroBox-7824B-H01-031-700-DR CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel i7-6600U CPU Memory 8GB DDR3 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply 110/220V AC Input DIN-Rail 110/220V AC Input DIN-Rail Operating System Optional Optional -
Document Datasheet 2D Line Drawing User Manual PDF E01 PDF
H01 PDFPDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Fanless Compact Computers Expandable Fanless Computers Rack Mount Computers
Download Download Download
-
Packing List Item QTY Description PIC APS-DR1072F-24 1 72W DIN-Rail Power Supply (AC DIN-Rail Version Only)
CB003 1 6 Feet US Power Cord (AC Power Adapter Version Only)
FSP060-DAAN3-2P-T 1 60W 24V Power Adapter (2 Pin Green Terminal Block)
Accessories Options Item QTY Description PIC CB001 1 6 Feet M-M VGA Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
BAT-02 1 2800mAh Rechargeable Smart Battery
Mounting Options Item QTY Description PIC VESA-7824 1 VESA Mount MicroBox-7824
-
Video
-
Specifications
Model Name MicroBox-7824B-E01 MicroBox-7824B-H01 System CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel i7-6600U CPU Chipset Bay Trail Skylake Memory Up to 8GB DDR3 SO-DIMM Up to 16GB DDR4 SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL3.2 Intel HD Graphics 520 Video Interface VGA & HDMI VGA & HDMI Storage Option 2.5" SSD 2.5" SSD CFast Optional Optional Keyboard/Mouse USB / PS2 USB / PS2 Audio N/A N/A Watchdog Timer YES YES Remote Boot ThinManager Ready, PXE PXE Expansion Slot Mini PCIe x 2 Mini PCIe x 1 I/O Communication USB Port 1 x USB 3.0, 3 x USB 2.0 1 x USB 3.0, 3 x USB 2.0 Serial Port 4 x RS-232/422/485 BIOS Selectable 4 x RS-232/422/485 BIOS Selectable IEEE 1394 N/A N/A LAN 2 x Gigabit 2 x Gigabit Parallel N/A N/A GPIO 4 x DI, 4x DO 4 x DI, 4x DO Smart Battery External Smart Battery Optional Optional OS Support OS Support Windows 7 & 10 Windows 10 Power / Thermal Specs Power Requirement (Max) 24V DC / 0.7A 24V DC / 2.0A Power Consumption (Max) 17W 48W Recommended Power Supply 24W 68W Heat Dissipation 58 BTU/hr 164 BTU/hr Physical Information Mounting Wall Mount, DIN-Rail Mount Wall Mount, DIN-Rail Mount Net Weight 5.1 Lbs / 2.3Kg 5.1 Lbs / 2.3Kg Dimension (W x H x D) 8.83 x 3.47 x 5.50 inch
224.4 x 80.2 x 139.7 mm8.83 x 3.47 x 5.50 inch
224.4 x 80.2 x 139.7 mmEnvironmental Operating Temperature 0~50ºC (32~122ºF) 0~50ºC (32~122ºF) Storage Temperature -20~60ºC (-4~140ºF) -20~60ºC (-4~140ºF) Relative Humidity 0~95% 0~95% Compliance IP/NEMA Rating meets IP50 meets IP50 Certification FCC, CE, UL 61010 UL 61010 -
Ordering Information
Ordering Information MicroBox-7824B-E01-003-DR MicroBox-7824B-E01-P03-DR CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUMemory 4GB DDR3 4GB DDR3 Storage N/A N/A Remote Boot ThinManager Ready PXE Power Supply 110/220V AC Input DIN-Rail 110/220V AC Input DIN-Rail Operating System N/A N/A Ordering Information MicroBox-7824B-E01-031-DR MicroBox-7824B-H01-031-700-DR CPU Intel Celeron J1900 @ 1.99GHz /
Atom E3845 @ 1.91GHz CPUIntel i7-6600U CPU Memory 8GB DDR3 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply 110/220V AC Input DIN-Rail 110/220V AC Input DIN-Rail Operating System Optional Optional -
Download
Document Datasheet 2D Line Drawing User Manual PDF E01 PDF
H01 PDFPDF Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender Download Download Download Download Download Datasheet Datasheet Datasheet Fanless Compact Computers Expandable Fanless Computers Rack Mount Computers Download Download Download
-
Accessories
Packing List Item QTY Description PIC APS-DR1072F-24 1 72W DIN-Rail Power Supply (AC DIN-Rail Version Only) CB003 1 6 Feet US Power Cord (AC Power Adapter Version Only) FSP060-DAAN3-2P-T 1 60W 24V Power Adapter (2 Pin Green Terminal Block) Accessories Options Item QTY Description PIC CB001 1 6 Feet M-M VGA Cable CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw BAT-02 1 2800mAh Rechargeable Smart Battery Mounting Options Item QTY Description PIC VESA-7824 1 VESA Mount MicroBox-7824
