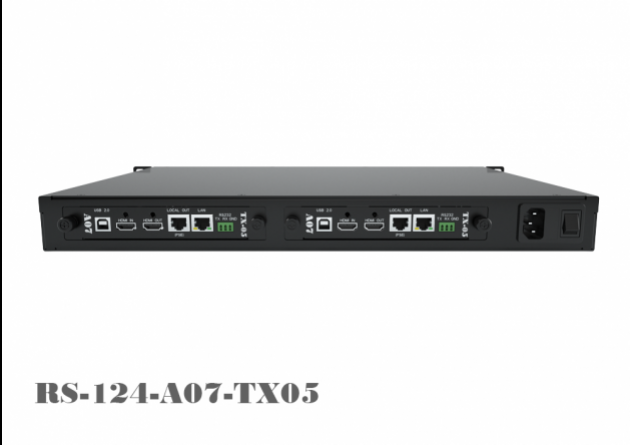

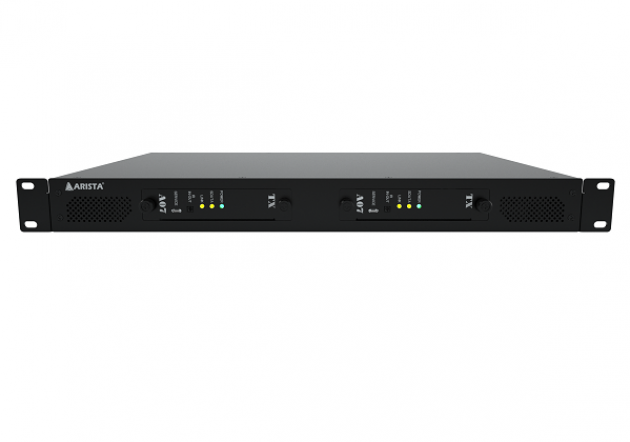

RS-124-A07-TX05
4K HDMI, USB Encoder / Transmitter
Description：
- True one cable 330 feet extension solution
- Encodes HDMI, USB, 10/100 LAN, RS-232, IR signals
- Power Source Equipment provides power to receiver
-
-
Specification RS-124-A07-TX05 Technical Role of Usage Transmitter (TX) Video resolution Up to 3840 x 2160 Extension Media Cat5e/Cat6 cable Encoding Signals HDMI, USB, RS-232, 10/100 Ethernet, Power Input /Output HDMI In HDMI female HDMI Loop-Back HDMI female RS-232 DB-9 USB 1x USB Type B Ethernet Hub 2 x 10/100 LAN IR Terminal Block 5-pin Transmitter Output RJ-45 Physical Information Mounting Wall mount or DIN-RAIL mount Dimension (W x H x D) Standard 1U 19" Rack Mount Power/Thermal Specs Power supply 110/220V AC Environmental Operation Temperature 0~50°C (32~122°F)) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% -
Ordering Information RS-124-A07-TX05-1 One HDMI, USB Transmitter Installed RS-124-A07-TX05-2 Two HDMI, USB Transmitters Installed -
Document Datasheet 2D Line Drawing User Manual PDF PDF PDF Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet KVM Extender Integrated Displays KVM Workstations KVM / KVM Switch Extender
Download Download Download
-
CB003 1 6 Feet US Power Cord
CB011 1 6 Feet M-M A-B USB 2.0 Touch Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
-
Connection Diagram
-
Specifications
Specification RS-124-A07-TX05 Technical Role of Usage Transmitter (TX) Video resolution Up to 3840 x 2160 Extension Media Cat5e/Cat6 cable Encoding Signals HDMI, USB, RS-232, 10/100 Ethernet, Power Input /Output HDMI In HDMI female HDMI Loop-Back HDMI female RS-232 DB-9 USB 1x USB Type B Ethernet Hub 2 x 10/100 LAN IR Terminal Block 5-pin Transmitter Output RJ-45 Physical Information Mounting Wall mount or DIN-RAIL mount Dimension (W x H x D) Standard 1U 19" Rack Mount Power/Thermal Specs Power supply 110/220V AC Environmental Operation Temperature 0~50°C (32~122°F)) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% -
Ordering Information
Ordering Information RS-124-A07-TX05-1 One HDMI, USB Transmitter Installed RS-124-A07-TX05-2 Two HDMI, USB Transmitters Installed -
Download
Document Datasheet 2D Line Drawing User Manual PDF PDF PDF Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender Download Download Download Download Download Datasheet Datasheet Datasheet KVM Extender Integrated Displays KVM Workstations KVM / KVM Switch Extender Download Download Download
-
Accessories
CB003 1 6 Feet US Power Cord CB011 1 6 Feet M-M A-B USB 2.0 Touch Cable CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
