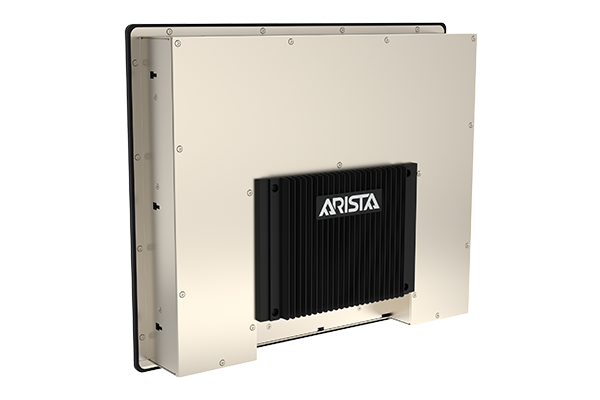

ARP-3617AP-K01
Panel Mount, 17 inch 5-Wire Resistive Touch, Supports Windows / Ubuntu / ThinManager
Description：
- 17" LCD, 1280 x 1024 Resolution
- 5-Wire Resistive Touch
- Aluminum or Stainless Steel Flush Bezel
- Intel N100 / N200 / X7425E / i3-N305 CPU, Up to 16GB DDR4
- Optional 2.5" SSD, M.2 NVMe SSD
- 1 x 2.5G, 1 x 1G Ethernet
- 3 x USB 3.2, 1 x USB 2.0 ports
- Powered by 802.3bt PoE or DC 24V option
- Supports Windows / Ubuntu / ThinManager
Please refer to ordering information for the specific configurations for your applications.
-
Specifications ARP-3617AP K01 LCD Display Display Size (Diagonal) 17.0 inch Resolution 1280 x 1024 Backlight Lifetime (Hours) 50,000 hours Visual Characteristics Colors 16.7 million Aspect ratio 5:4 Viewing angle (V/H) 160° / 170° Contrast ratio 800 : 1 Brightness 350 nits (Typical) Touchscreen Technology 5 Wire Resistive Interface USB Driver Windows 10/11, ThinManager USB Touch Module Front Bezel NEMA 4 Black Powder Coated Aluminum NEMA 4x Stainless Steel (Optional) System CPU N100/N200/X7425E/i3-N305 Chipset Alder Lake Memory Up to 16GB DDR4 SO-DIMM Video Controller Intel® UHD Graphics External Video Output DP, HDMI Storage Option 2.5" SSD, NVMe SSD (M.2 2280) CFast Card Optional Keyboard / Mouse USB Audio Line Out, Mic Watchdog Timer Yes Remote Boot ThinManager Option Expansion Slot M.2 1630 I/O Communication USB Port 3 x USB 3.2, 1 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x 2.5GB, 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Windows 10/11, Ubuntu, ThinManager Power/Thermal Specs Power Requirement (Max) DC 24V @1.8A / 802.3bt PoE Power Consumption (Max) 43 W Recommended Power Supply 62 W Heat Dissipation 147 BTU/hr Physical Information Mounting Panel Mount Net Weight 15 Lbs / 6.80 Kg Dimension (W x H x D) 15.88 x 13.34 x 3.41 inch
403.35 x 338.84 x 86.64 mmRecommended Cutout Dimension (WxH) 15.06 x 12.64 inch
33.1 x 27.8 mmEnvironmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% Compliance IP/NEMA Rating Bezel meets NEMA 4/4X requirement Certification -- -
ThinManager Ready / Powered By PoE Ordering Information ARP-3617AP-K01-A02 ARP-3617AP-K01-A06 LCD Display 17.0" LCD / 1280 x 1024 17.0" LCD / 1280 x 1024 Touch Screen 5-Wire Resistive Touch 5-Wire Resistive Touch Bezel Black Powder Coated Aluminum Stainless Steel CPU N100/N200/X7425E N100/N200/X7425E Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready ThinManager Ready Power Supply Powered By 802.3 PoE Powered By 802.3 PoE ThinManager Ready / Powered By 24V DC Ordering Information ARP-3617AP-K01-003 ARP-3617AP-K01-007 LCD Display 17.0" LCD / 1280 x 1024 17.0" LCD / 1280 x 1024 Touch Screen 5-Wire Resistive Touch 5-Wire Resistive Touch Bezel Black Powder Coated Aluminum Stainless Steel CPU N100/N200/X7425E N100/N200/X7425E Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready ThinManager Ready Power Supply DC24V via DIN Rail Power Supply DC24V via DIN Rail Power Supply Windows OS / Powered By PoE Ordering Information ARP-3617AP-K01-A30-300 ARP-3617AP-K01-A34-300 LCD Display 17.0" LCD / 1280 x 1024 17.0" LCD / 1280 x 1024 Touch Screen 5-Wire Resistive Touch 5-Wire Resistive Touch Bezel Black Powder Coated Aluminum Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply Powered By 802.3 PoE Powered By 802.3 PoE Windows OS / Powered By 24V DC Ordering Information ARP-3617AP-K01-031-300 ARP-3617AP-K01-035-300 LCD Display 17.0" LCD / 1280 x 1024 17.0" LCD / 1280 x 1024 Touch Screen 5-Wire Resistive Touch 5-Wire Resistive Touch Bezel Black Powder Coated Aluminum Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply DC24V via DIN Rail Power Supply DC24V via DIN Rail Power Supply -
Document Datasheet 2D Line Drawing User Manual PDF PDF N/A Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset Touch (eGalax) Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset Touch (eGalax) Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset Touch (eGalax) Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset Touch (eGalax) Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
Download Download Download Download Download -
Packing List Item QTY Description PIC AR02045 13 Panel Mount Hanger with Screw
AR06307 5 Panel Mount Bracket with Screw
APS-DR1072F-24 1 72W DIN-Rail Power Supply (AC DIN-Rail Version Only)
Accessories Options Item QTY Description PIC CB001 1 6 Feet M-M VGA Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
BAT-01 1 2800mAh Rechargeable Smart Battery
-
