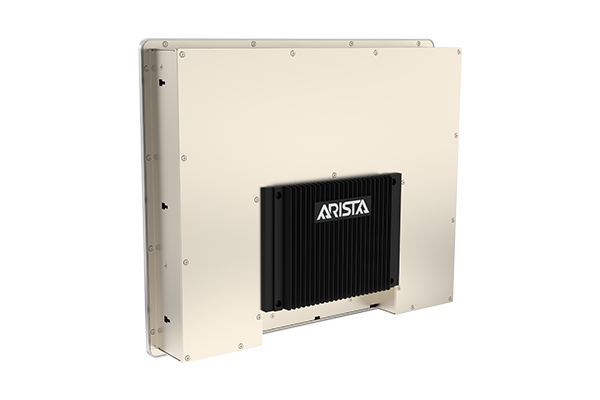

ARP-3819AP-K01
Panel Mount, 19 inch PCAP Touch, Supports Windows / Ubuntu / ThinManager
Description：
- 19" LCD, 1920 x 1080 Resolution
- Projected Capacitive Touch Screen
- Aluminum or 316L Stainless-Steel Flush Bezel
- Intel N100 / N200 / X7425E / i3-N305 CPU, Up to 16GB DDR4
- Optional 2.5" SSD, M.2 NVMe SSD
- 1 x 2.5G, 1 x 1G Ethernet
- 3 x USB 3.2, 1 x USB 2.0 ports
- Powered by 802.3bt PoE or DC 24V option
- Supports Windows / Ubuntu / ThinManager
Please refer to ordering information for the specific configurations for your applications.
-
Specifications ARP-3819AP K01 LCD Display Display Size (Diagonal) 19.0 inch Resolution 1280 x 1024 Backlight Lifetime (Hours) 50,000 hours Visual Characteristics Colors 16.7 million Aspect ratio 5:4 Viewing angle (V/H) 160° / 170° Contrast ratio 1000:1 Brightness 450 nits (Typical) Touchscreen Technology Projected Capacitive Interface USB Driver Windows 10/11, ThinManager USB Touch Module Front Bezel NEMA 4 Black Powder Coated Aluminum NEMA 4x 316L Stainless Steel (Optional) System CPU N100/N200/X7425E/i3-N305 Chipset Alder Lake Memory Up to 16GB DDR4 SO-DIMM Video Controller Intel® UHD Graphics External Video Output DP, HDMI Storage Option 2.5" SSD, NVMe SSD (M.2 2280) Compact Flash Optional Keyboard / Mouse USB Audio Line Out, Mic In Watchdog Timer YES Remote Boot ThinManager Option Expansion Slot M.2 1630 I/O Communication USB Port 3 x USB 3.2, 1 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x 2.5GB, 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Windows 10/11, Ubuntu, ThinManager Power/Thermal Specs Power Requirement (Max) DC 24V@2.4A / 802.3bt PoE Power Consumption (Max) 51W Recommended Power Supply 75W Heat Dissipation 174 BTU/hr Physical Information Mounting Panel Mount Net Weight 18 Lbs / 8.16 Kg Dimension (W x H x D) 16.85 x 13.9 x 3.33 inch
428 x 353 x 84.5 mmRecommended Cutout Dimension (WxH) 16.20 x 13.25 inch
411.4 x 336.4 mmEnvironmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% Compliance IP/NEMA Rating Bezel meets NEMA 4/4X requirement Certification - - -
ThinManager Ready / Powered By PoE Ordering Information ARP-3819AP-K01-A02 ARP-3819AP-K01-A06 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU N100/N200/X7425E N100/N200/X7425E Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready ThinManager Ready Power Supply Powered By 802.3 PoE Powered By 802.3 PoE ThinManager Ready / Powered By 24V DC Ordering Information ARP-3819AP-K01-003 ARP-3819AP-K01-007 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU N100/N200/X7425E N100/N200/X7425E Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready ThinManager Ready Power Supply DC24V via DIN Rail Power Supply DC24V via DIN Rail Power Supply Windows OS / Powered By PoE Ordering Information ARP-3819AP-K01-A30-300 ARP-3819AP-K01-A34-300 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply Powered By 802.3 PoE Powered By 802.3 PoE Windows OS / Powered By 24V DC Ordering Information ARP-3819AP-K01-031-300 ARP-3819AP-K01-035-300 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply DC24V via DIN Rail Power Supply DC24V via DIN Rail Power Supply ARP-3800AP Series stainless Steel front bezel is made of Stainless Steel 316L and corrosion free against Cleaning Agents and Solvents used in Pharmaceutical industry listed below:
- Isopropyl alcohol:Used for cleaning equipment and surfaces due to robust decreasing and disinfection properties.
- Hydrogen peroxide (50% and 100%): Used for cleaning and disinfection, as well as the removal of microorganisms in aseptic environments.
- Acetone: Used for removing residues insoluble in water. This product is ideal for equipment cleansing.
- Ethanol: A common disinfectant frequently used for decontaminating surfaces and equipment.
- Citric acid: Used for cleaning stainless steel equipment, removing mineral deposits, and cleansing surfaces.
- Sodium bicarbonate: Used for cleaning sensitive surfaces and equipment where more abrasive agents may cause damage.
-
Document Datasheet 2D Line Drawing User Manual PDF PDF N/A Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN
Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
Download Download Download Download Download -
Packing List Item QTY Description PIC AR02045 13 Panel Mount Hanger with Screw
AR06307 5 Panel Mount Bracket with Screw
APS-DR1072F-24 1 72W DIN-Rail Power Supply (AC DIN-Rail Version Only)
Accessories Options Item QTY Description PIC CB001 1 6 Feet M-M VGA Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
BAT-01 1 2800mAh Rechargeable Smart Battery
-
Specifications
Specifications ARP-3819AP K01 LCD Display Display Size (Diagonal) 19.0 inch Resolution 1280 x 1024 Backlight Lifetime (Hours) 50,000 hours Visual Characteristics Colors 16.7 million Aspect ratio 5:4 Viewing angle (V/H) 160° / 170° Contrast ratio 1000:1 Brightness 450 nits (Typical) Touchscreen Technology Projected Capacitive Interface USB Driver Windows 10/11, ThinManager USB Touch Module Front Bezel NEMA 4 Black Powder Coated Aluminum NEMA 4x 316L Stainless Steel (Optional) System CPU N100/N200/X7425E/i3-N305 Chipset Alder Lake Memory Up to 16GB DDR4 SO-DIMM Video Controller Intel® UHD Graphics External Video Output DP, HDMI Storage Option 2.5" SSD, NVMe SSD (M.2 2280) Compact Flash Optional Keyboard / Mouse USB Audio Line Out, Mic In Watchdog Timer YES Remote Boot ThinManager Option Expansion Slot M.2 1630 I/O Communication USB Port 3 x USB 3.2, 1 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x 2.5GB, 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Windows 10/11, Ubuntu, ThinManager Power/Thermal Specs Power Requirement (Max) DC 24V@2.4A / 802.3bt PoE Power Consumption (Max) 51W Recommended Power Supply 75W Heat Dissipation 174 BTU/hr Physical Information Mounting Panel Mount Net Weight 18 Lbs / 8.16 Kg Dimension (W x H x D) 16.85 x 13.9 x 3.33 inch
428 x 353 x 84.5 mmRecommended Cutout Dimension (WxH) 16.20 x 13.25 inch
411.4 x 336.4 mmEnvironmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% Compliance IP/NEMA Rating Bezel meets NEMA 4/4X requirement Certification - - -
Ordering Information
ThinManager Ready / Powered By PoE Ordering Information ARP-3819AP-K01-A02 ARP-3819AP-K01-A06 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU N100/N200/X7425E N100/N200/X7425E Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready ThinManager Ready Power Supply Powered By 802.3 PoE Powered By 802.3 PoE ThinManager Ready / Powered By 24V DC Ordering Information ARP-3819AP-K01-003 ARP-3819AP-K01-007 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU N100/N200/X7425E N100/N200/X7425E Memory 4GB DDR4 4GB DDR4 Storage N/A N/A Remote Boot ThinManager Ready ThinManager Ready Power Supply DC24V via DIN Rail Power Supply DC24V via DIN Rail Power Supply Windows OS / Powered By PoE Ordering Information ARP-3819AP-K01-A30-300 ARP-3819AP-K01-A34-300 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply Powered By 802.3 PoE Powered By 802.3 PoE Windows OS / Powered By 24V DC Ordering Information ARP-3819AP-K01-031-300 ARP-3819AP-K01-035-300 LCD Display 19.0" LCD / 1280 x 1024 19.0" LCD / 1280 x 1024 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply DC24V via DIN Rail Power Supply DC24V via DIN Rail Power Supply ARP-3800AP Series stainless Steel front bezel is made of Stainless Steel 316L and corrosion free against Cleaning Agents and Solvents used in Pharmaceutical industry listed below:
- Isopropyl alcohol:Used for cleaning equipment and surfaces due to robust decreasing and disinfection properties.
- Hydrogen peroxide (50% and 100%): Used for cleaning and disinfection, as well as the removal of microorganisms in aseptic environments.
- Acetone: Used for removing residues insoluble in water. This product is ideal for equipment cleansing.
- Ethanol: A common disinfectant frequently used for decontaminating surfaces and equipment.
- Citric acid: Used for cleaning stainless steel equipment, removing mineral deposits, and cleansing surfaces.
- Sodium bicarbonate: Used for cleaning sensitive surfaces and equipment where more abrasive agents may cause damage.
-
Download
Document Datasheet 2D Line Drawing User Manual PDF PDF N/A Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN
Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series Download Download Download Download Download -
Accessories
Packing List Item QTY Description PIC AR02045 13 Panel Mount Hanger with Screw AR06307 5 Panel Mount Bracket with Screw APS-DR1072F-24 1 72W DIN-Rail Power Supply (AC DIN-Rail Version Only) Accessories Options Item QTY Description PIC CB001 1 6 Feet M-M VGA Cable CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw BAT-01 1 2800mAh Rechargeable Smart Battery
